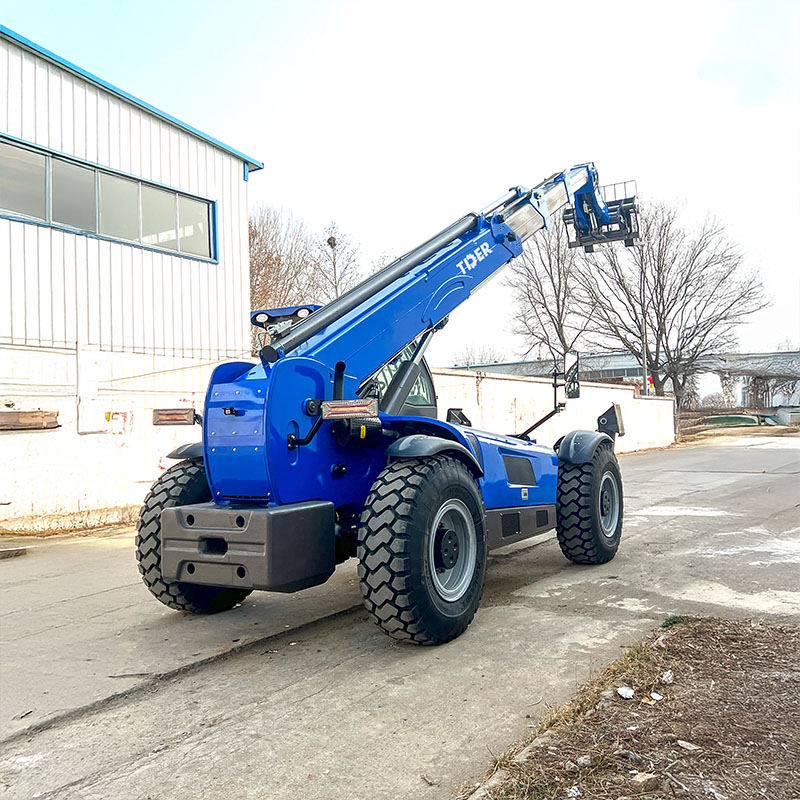

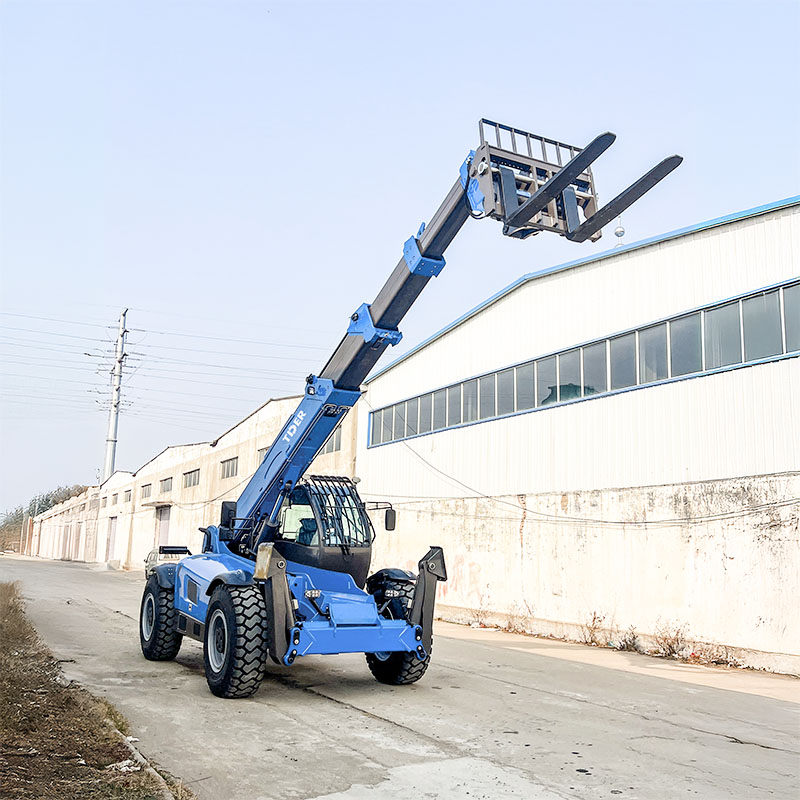

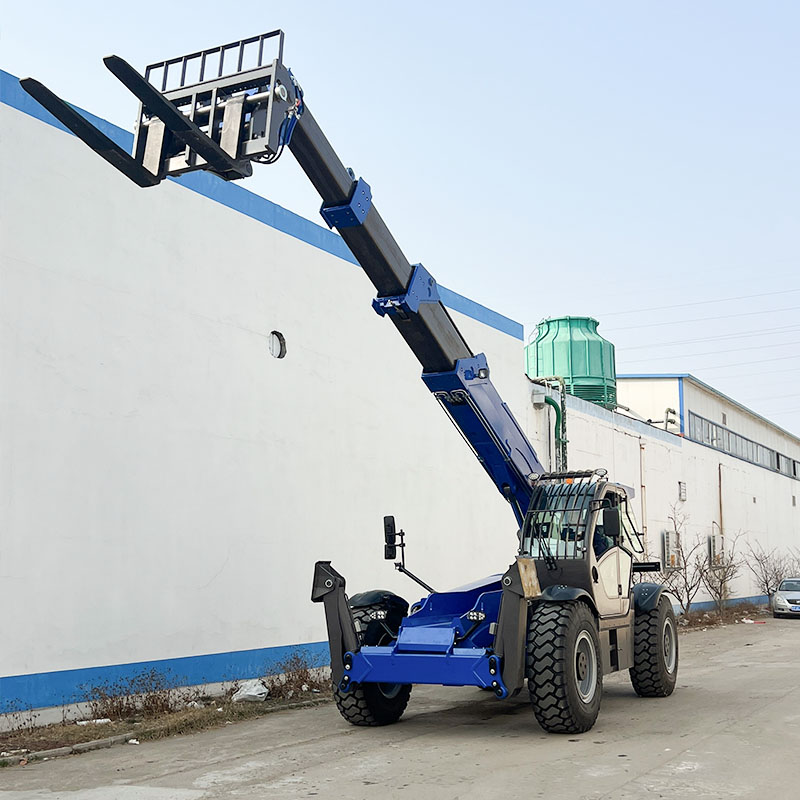

6 Ton Telehandler
FT60
Đặc trưng
International Engine Options: Fiat, Cummins And Perkins
The FT60 offers internationally recognized Fiat, Cummins and Perkins engines as powertrain options, allowing customers to select the engine brand and configuration suited to their market and project requirements. Depending on the selected engine, the machine can be configured to meet EPA, Euro V or Euro III emission standards.
A flagship platform with substantial structural reserves
The FT60 combines BS1000 high-strength steel with a 2.5-ton cast counterweight and integrated stabilizers. This configuration provides a strong foundation for demanding high-reach work and supports the machine's larger working envelope without reducing its focus on load stability.
Hydraulic control designed for precise long-boom positioning
A load-sensitive hydraulic system and dedicated proportional valve provide controlled boom and attachment movements throughout the working range. This becomes particularly valuable at 17.5 m, where precise hydraulic response helps the operator make accurate adjustments during elevated load placement.
Designed for operators who spend long hours in the machine
The FT60 combines a climate-controlled cab with electric seat adjustment, seat heating, color LCD display, multimedia functions and camera-assisted visibility. Illuminated controls and ergonomic machine operation further support day-to-day usability when working through long shifts.
THÔNG SỐ KỸ THUẬT
| Max. Capacity | kg | 6000 |
| Max. Lifting Height | m | 17.55 |
| Max. Outreach | m | 11.2 |
| Overall Length To Carriage | m | 6.8 |
| Length To Face Of Forks | m | 8 |
| Overall Width | m | 2.6 |
| Overall Height | m | 2.85 |
| Wheelbase | m | 3.55 |
| Ground Clearance | m | 0.42 |
| Overall Cab Width | m | 0.84 |
| Tilt-Up Angle | ° | 12 |
| Tilt-Down Angle | ° | 114 |
| External Turning Radius(Over Tyres) | m | 4.1 |
| Unladen Weight(With Fork) | kg | 14800 |
| Engine Brand | YUCHAI | |
| Engine Model | YCD4P32T-150 | |
| Rating Power | kw | 110 |
| Lifting | s | 18 |
| Lowering | s | 14.4 |
| Extension | s | 17.9 |
| Retraction | s | 16.5 |
| Crowd | s | 5.1 |
| Dump | s | 4 |
| Hydraulic Pump Type | Gear pump | |
| Hydraulic Flow | L/min | 167 |
| Engine Oil | L | 5.5 |
| Hydraulic Oil | L | 110 |
| Fuel Tank | L | 155 |
| Transmission Type | Torque converter | |
| Number Of Gears (Forward / Reverse) | 46116 | |
| Max. Travel Speed | km/h | 40 |
| Parking Brake | Automatic air-cut brake | |
| Service Brake | Immersed multi-discs braking on front & rear axles | |
| Steering Wheels (Front / Rear) | 46055 | |
| Drive Wheels (Front / Rear) | 46055 | |
| Safety Cab Homologation | FOPS level 3 cab | |
| TiresType | Tubeless | |
| Standard Tires | 440/80-25 | |
| Forks Dimension | mm | 1220*125*50 |
*LƯU Ý: Thông số kỹ thuật và cấu hình có thể thay đổi do việc nâng cấp và cải tiến sản phẩm liên tục mà không cần thông báo trước. Tất cả thông tin chỉ mang tính tham khảo và một số tính năng là tùy chọn. Vui lòng liên hệ với đội ngũ bán hàng quốc tế của chúng tôi để xác nhận. Thông số kỹ thuật và cấu hình cuối cùng sẽ tuân theo hợp đồng chính thức được ký kết giữa hai bên.
