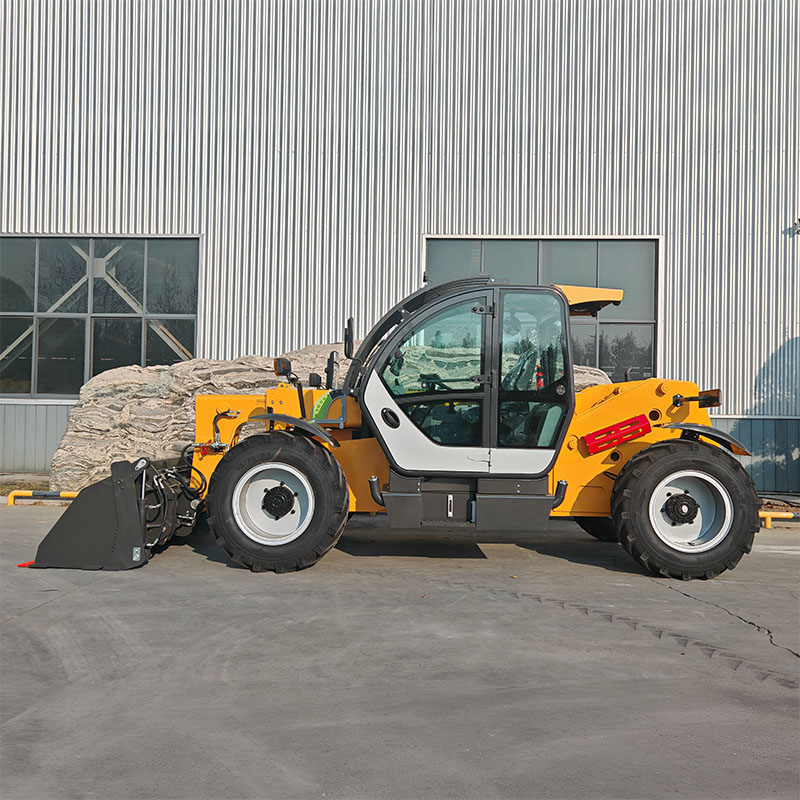

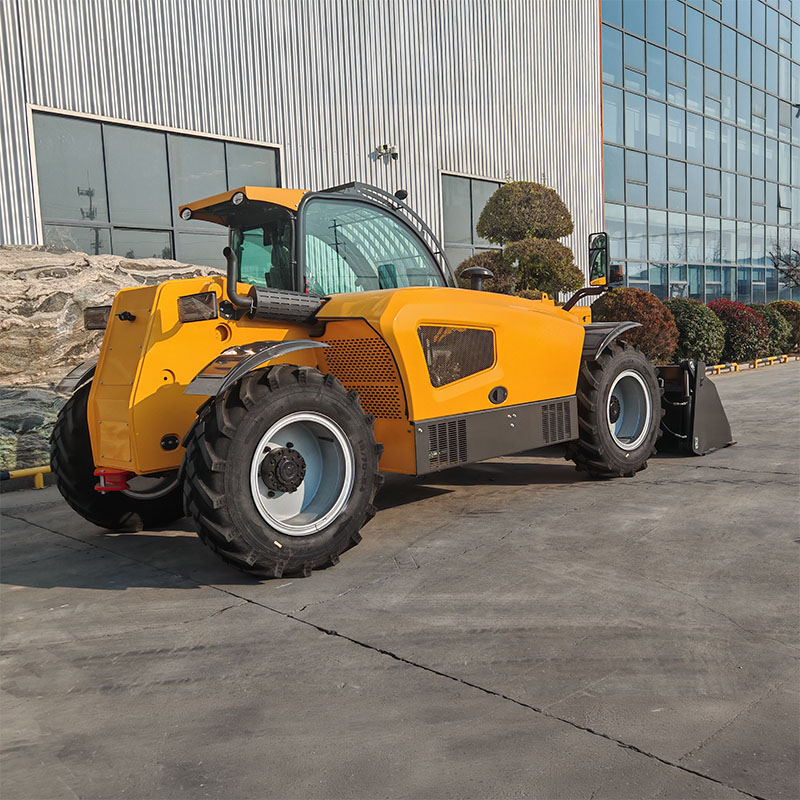

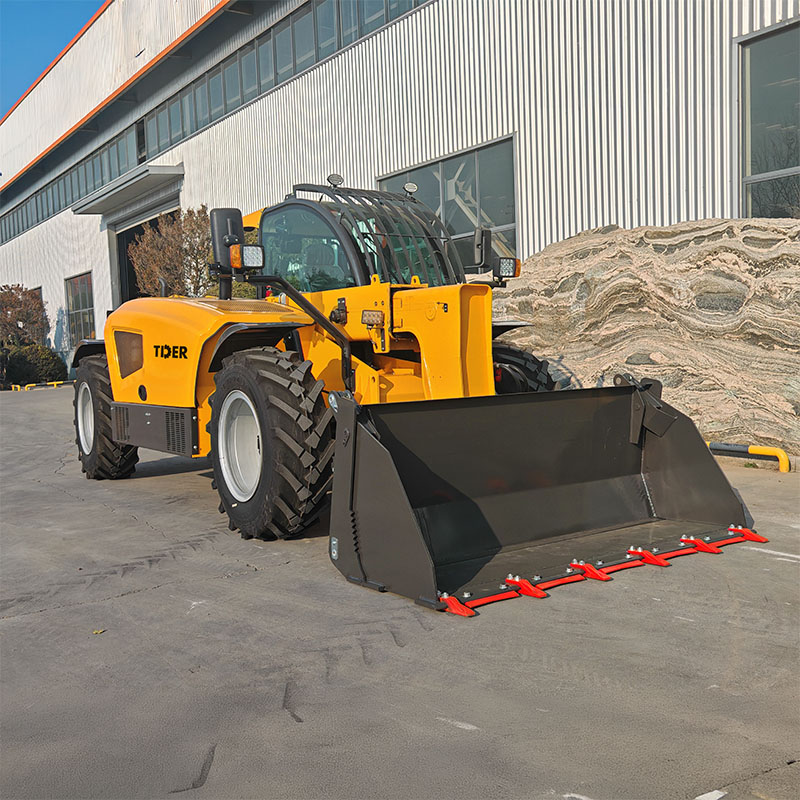

3 Ton Telehandler
FT30
Đặc trưng
Side-Opening Hood Makes Routine Maintenance More Efficient
The large side-opening engine hood provides wide access to the engine compartment, allowing the engine oil filter, diesel filter and air filter to be reached from one service area. This “one-stop” maintenance design helps simplify routine servicing and reduce unnecessary maintenance steps.
Four-Wheel And Crab Steering For Confined Work Areas
The FT30 telehandler forklift offers multiple steering configurations to adapt to different working environments. Four-wheel steering helps the machine maneuver through long and narrow spaces, while crab steering allows diagonal movement when operating alongside buildings, walls or other restricted areas.
Inching Control And Dedicated Overload Protection
Inching control technology gives the operator finer control when making slow, precise movements during loading and positioning. Combined with a dedicated overload control system, the FT30 is designed to support safer and more reliable operation when handling demanding loads.
Maintenance-Free Wet Brake Axle For Harsh Working Conditions
The maintenance-free multi-piece wet brake axle uses spring-applied, hydraulically released braking with a fully enclosed wet-brake design. This construction helps protect the braking components from demanding environmental conditions while reducing routine brake maintenance requirements.
THÔNG SỐ KỸ THUẬT
| Main Performance | Maximum Capacity | kg | 3000 |
| Maximum Lift Height | m | 7 | |
| Maximum Outreach | m | 3.2 | |
| Weight & Dimensions | Overall Length to Carriage | m | 4.65 |
| Length to Face of Forks | m | 5.87 | |
| Overall Width | m | 2.2 | |
| Overall Height | m | 2.55 | |
| Wheelbase | m | 3.15 | |
| Ground Clearance | m | 0.35 | |
| Overall Cab Width | m | 0.84 | |
| Tilt-Up Angle | ° | 12 | |
| Tilt-Down Angle | ° | 114 | |
| External Turning Radius (Over Tires) | m | 4.25 | |
| Unladen Weight (with Forks) | kg | 7600 | |
| Tires | Tire Type | — | Pneumatic |
| Standard Tire Size | — | 16/70-20 | |
| Forks | Fork Length / Width / Section | mm | 1220 × 125 / 50 |
| Performance | Lifting Time | s | 10 |
| Lowering Time | s | 7 | |
| Extension Time | s | 12 | |
| Retraction Time | s | 8.6 | |
| Crowd Time | s | 4.8 | |
| Dump Time | s | 3.4 | |
| Engine | Engine Brand | — | YUNNEI |
| Engine Model | — | YN38GBZ | |
| Rated Power | kW | 76 | |
| Transmission | Transmission Type | — | Torque Converter |
| Number of Gears (Forward / Reverse) | — | 46055 | |
| Maximum Travel Speed | km/h | 35 | |
| Parking Brake | — | Automatic Air-Cut Brake | |
| Service Brake | — | Oil-Immersed Multi-Disc Brakes on Front & Rear Axles | |
| Hydraulics | Hydraulic Pump Type | — | Gear Pump |
| Hydraulic Flow / Pressure | L/min / bar | 100 | |
| Tank Capacities | Engine Oil | L | 5.5 |
| Hydraulic Oil | L | 70 | |
| Fuel Tank | L | 95 | |
| Noise & Vibration | Noise at Driving Position (Lpa) | dB | 82 |
| Noise to Environment (Lwa) | dB | 105 | |
| Hand/Arm Vibration | m/s² | <2.50 | |
| Miscellaneous | Steering Wheels (Front / Rear) | — | 2/2 |
| Drive Wheels (Front / Rear) | — | 2/2 | |
| Safety Cab Homologation | — | FOPS Level 2 Cab |
*LƯU Ý: Thông số kỹ thuật và cấu hình có thể thay đổi do việc nâng cấp và cải tiến sản phẩm liên tục mà không cần thông báo trước. Tất cả thông tin chỉ mang tính tham khảo và một số tính năng là tùy chọn. Vui lòng liên hệ với đội ngũ bán hàng quốc tế của chúng tôi để xác nhận. Thông số kỹ thuật và cấu hình cuối cùng sẽ tuân theo hợp đồng chính thức được ký kết giữa hai bên.
