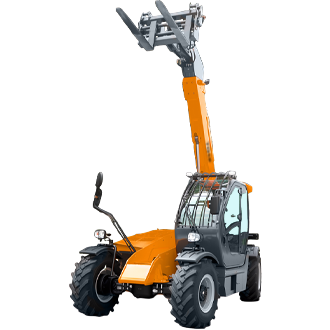

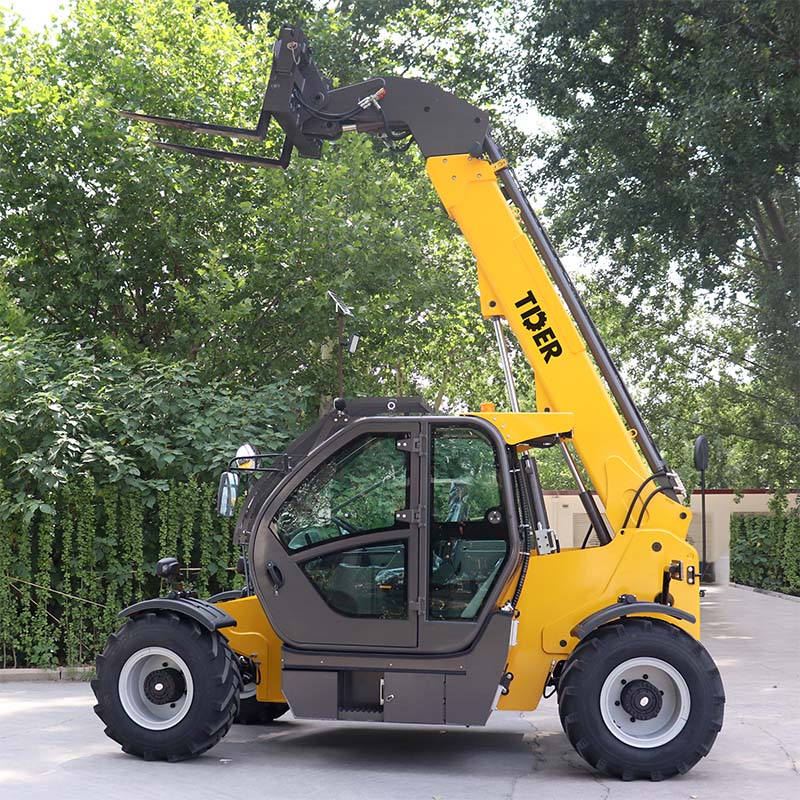

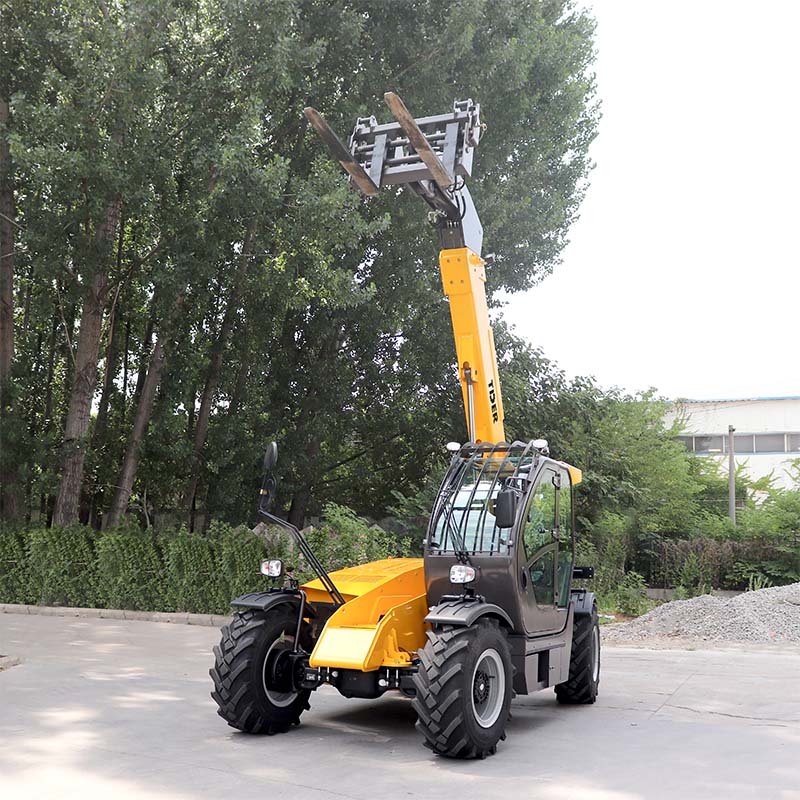

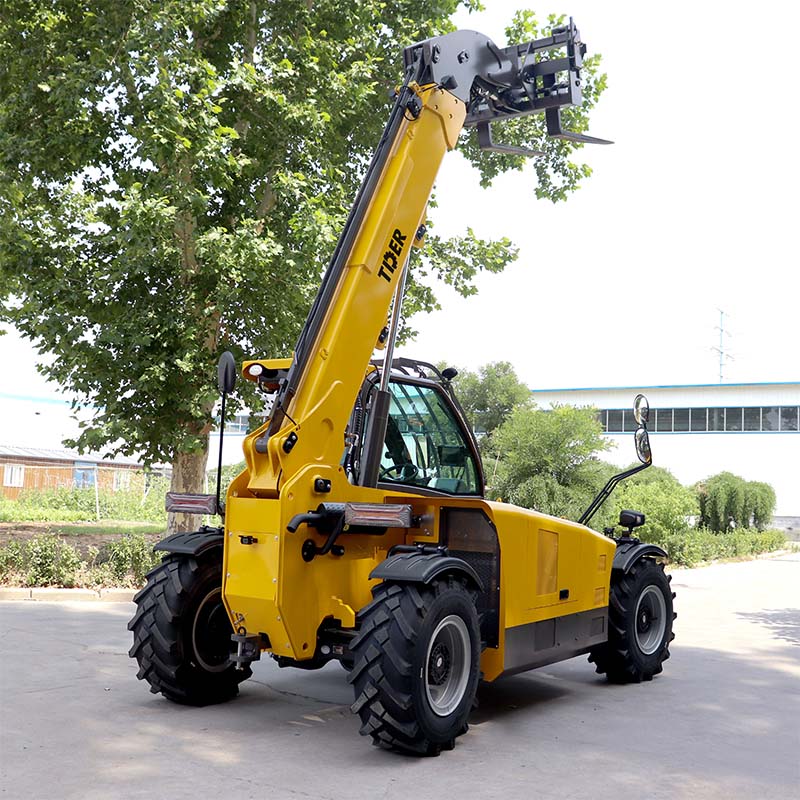

3.5 Ton Telehandler
FT35
Đặc trưng
Precision weighing turns handling into measurable work
The FT35 is particularly suited to operations where knowing the actual load matters. Its integrated weighing system offers claimed accuracy of 0.5%, allowing operators to monitor material weight during handling and reduce unnecessary weighing steps in repetitive loading and stacking work.
Automatic fork leveling simplifies pallet placement
Instead of requiring the operator to constantly correct the fork angle while changing boom position, automatic fork leveling helps maintain the attachment orientation during lifting and lowering. This is especially useful for repetitive pallet handling where consistent pickup and placement are important.
Designed for controlled, repeatable handling
The FT35 combines electronic telescoping control with hydraulic pilot operation and its Smart Handling functions. Batch Mode can coordinate boom movement during vertical stacking, while Manual Mode allows experienced operators to take direct control whenever a particular handling task requires it.
Visibility and ergonomics support longer working sessions
The premium cab provides heating and air conditioning, an adjustable seat, color LCD display and multimedia functions. Front, rear and right-side camera views help the operator monitor the working area, while illuminated controls improve visibility when working in darker conditions.
A versatile platform for attachment-based work
Hydraulic quick coupling and a three-function valve make attachment changes practical for different material-handling tasks. With four-wheel drive, 16/70-20 pneumatic tires and electronically controlled travel, the FT35 provides the versatility expected from a professional telescopic forklift without limiting the machine to one type of operation.
THÔNG SỐ KỸ THUẬT
| Main Performance | Maximum Capacity | kg | 3500 |
| Maximum Lift Height | m | 7 | |
| Maximum Outreach | m | 3.2 | |
| Weight & Dimensions | Overall Length to Carriage | m | 4.65 |
| Length to Face of Forks | m | 5.87 | |
| Overall Width | m | 2.2 | |
| Overall Height | m | 2.55 | |
| Wheelbase | m | 3.15 | |
| Ground Clearance | m | 0.35 | |
| Overall Cab Width | m | 0.84 | |
| Tilt-Up Angle | ° | 12 | |
| Tilt-Down Angle | ° | 114 | |
| External Turning Radius (Over Tires) | m | 4.25 | |
| Unladen Weight (with Forks) | kg | 7600 | |
| Tires | Tire Type | — | Pneumatic |
| Standard Tire Size | — | 16/70-20 | |
| Forks | Fork Length / Width / Section | mm | 1220 × 125 / 50 |
| Performance | Lifting Time | s | 10 |
| Lowering Time | s | 7 | |
| Extension Time | s | 12 | |
| Retraction Time | s | 8.6 | |
| Crowd Time | s | 4.8 | |
| Dump Time | s | 3.4 | |
| Engine | Engine Brand | — | YUCHAI/YUNNEI |
| Engine Model | — | YCD4M22T-105 / YN38GBZ | |
| Rated Power | kW | 77.3 / 76 | |
| Transmission | Transmission Type | — | Torque Converter |
| Number of Gears (Forward / Reverse) | — | 46055 | |
| Maximum Travel Speed | km/h | 35 | |
| Parking Brake | — | Automatic Air-Cut Brake | |
| Service Brake | — | Oil-Immersed Multi-Disc Brakes on Front & Rear Axles | |
| Hydraulics | Hydraulic Pump Type | — | Gear Pump |
| Hydraulic Flow / Pressure | L/min / bar | 100 | |
| Tank Capacities | Engine Oil | L | 5.5 |
| Hydraulic Oil | L | 70 | |
| Fuel Tank | L | 95 | |
| Noise & Vibration | Noise at Driving Position (Lpa) | dB | 82 |
| Noise to Environment (Lwa) | dB | 105 | |
| Hand/Arm Vibration | m/s² | <2.50 | |
| Miscellaneous | Steering Wheels (Front / Rear) | — | 2/2 |
| Drive Wheels (Front / Rear) | — | 2/2 | |
| Safety Cab Homologation | — | FOPS Level 2 Cab |
*LƯU Ý: Thông số kỹ thuật và cấu hình có thể thay đổi do việc nâng cấp và cải tiến sản phẩm liên tục mà không cần thông báo trước. Tất cả thông tin chỉ mang tính tham khảo và một số tính năng là tùy chọn. Vui lòng liên hệ với đội ngũ bán hàng quốc tế của chúng tôi để xác nhận. Thông số kỹ thuật và cấu hình cuối cùng sẽ tuân theo hợp đồng chính thức được ký kết giữa hai bên.
