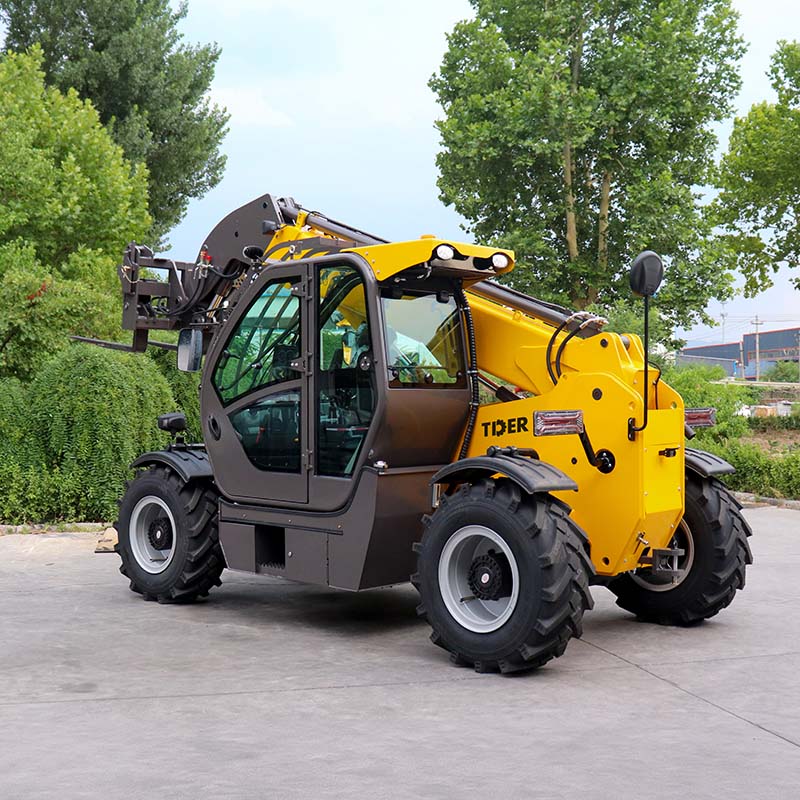

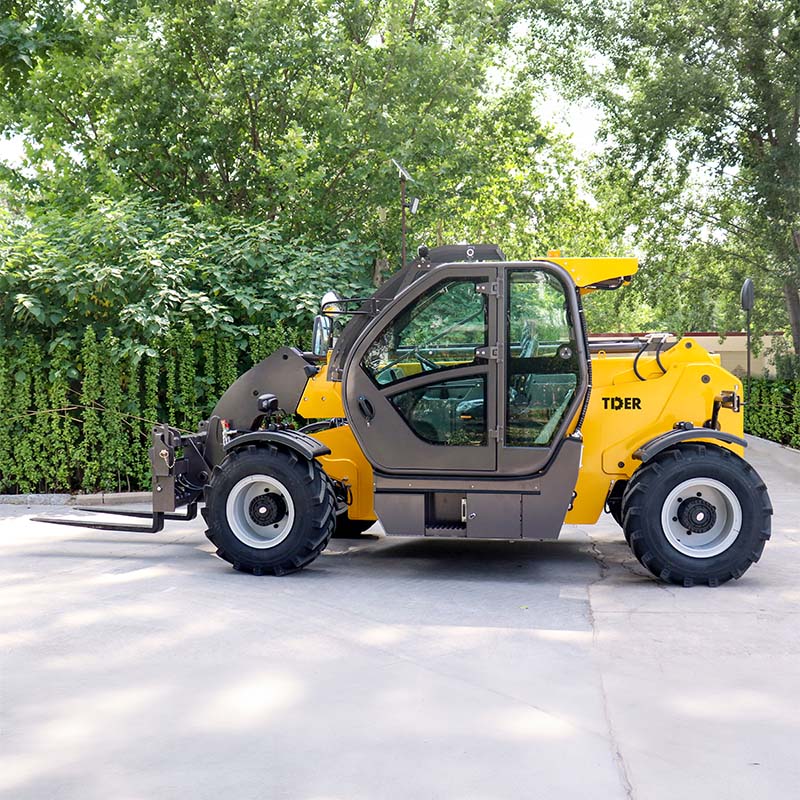

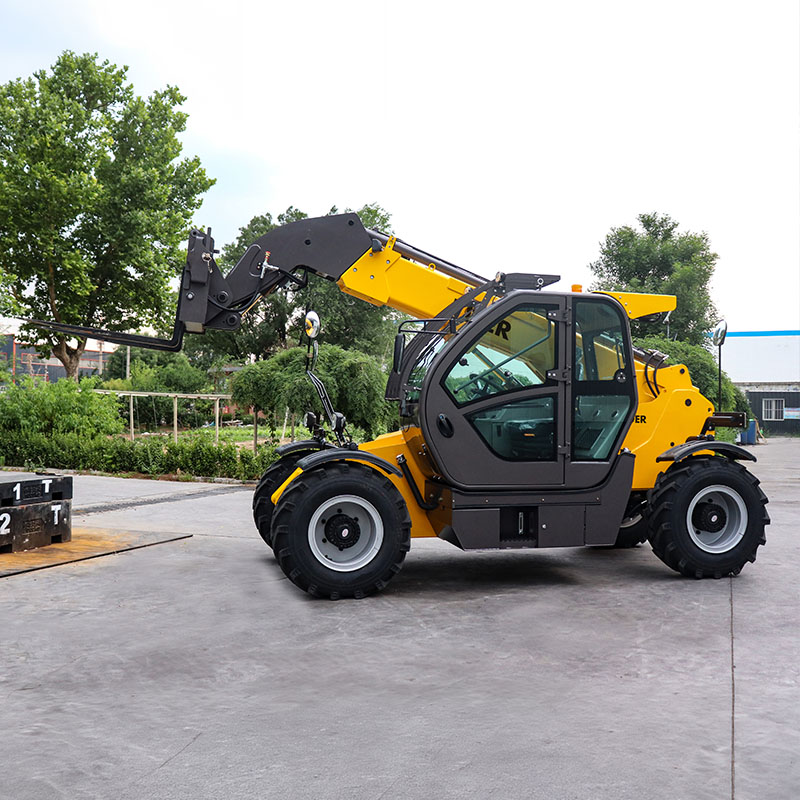

3 Ton Telehandler
FT30
Đặc trưng
Smart Handling for faster everyday material movement
The FT30 is designed around frequent loading, stacking and repositioning tasks. Its Smart Handling system gives operators three operating modes: Shovel Mode automatically retracts the boom while lowering the loading system, Batch Mode coordinates boom movement for vertical handling, and Manual Mode leaves direct control to the operator while maintaining overload protection.
40 km/h travel keeps the machine moving between work areas
The FT30 combines a continuously variable drive with electronically controlled travel, allowing smooth acceleration from standstill to up to 40 km/h without power interruption from manual gear changes. For yards, warehouses, construction sites and material-handling operations where the machine repeatedly travels between loading and unloading points, this reduces unnecessary travel time.
A 7 m boom without sacrificing day-to-day maneuverability
Its two-stage 7 m boom provides useful reach for routine loading and stacking while keeping the machine practical for everyday site movement. Four-wheel drive and three steering configurations give the operator different ways to approach pallets, trucks and confined working areas.
Smooth cylinder control protects the machine during repetitive cycles
End-position damping is built into the lifting, tilting and telescopic cylinders. By absorbing movement as the cylinders approach their end positions, the system helps reduce hydraulic pressure peaks and unnecessary shocks during repeated boom operations.
Attachment flexibility makes one machine useful for more jobs
A hydraulic quick coupler and three-function valve allow the FT30 to work with different compatible attachments. This gives buyers looking for a versatile telehandler a practical platform for more than conventional fork handling.
THÔNG SỐ KỸ THUẬT
| Main Performance | Maximum Capacity | kg | 3000 |
| Maximum Lift Height | m | 7 | |
| Maximum Outreach | m | 3.2 | |
| Weight & Dimensions | Overall Length to Carriage | m | 4.65 |
| Length to Face of Forks | m | 5.87 | |
| Overall Width | m | 2.2 | |
| Overall Height | m | 2.55 | |
| Wheelbase | m | 3.15 | |
| Ground Clearance | m | 0.35 | |
| Overall Cab Width | m | 0.84 | |
| Tilt-Up Angle | ° | 12 | |
| Tilt-Down Angle | ° | 114 | |
| External Turning Radius (Over Tires) | m | 4.25 | |
| Unladen Weight (with Forks) | kg | 7600 | |
| Tires | Tire Type | — | Pneumatic |
| Standard Tire Size | — | 16/70-20 | |
| Forks | Fork Length / Width / Section | mm | 1220 × 125 / 50 |
| Performance | Lifting Time | s | 10 |
| Lowering Time | s | 7 | |
| Extension Time | s | 12 | |
| Retraction Time | s | 8.6 | |
| Crowd Time | s | 4.8 | |
| Dump Time | s | 3.4 | |
| Engine | Engine Brand | — | YUNNEI |
| Engine Model | — | YN38GBZ | |
| Rated Power | kW | 76 | |
| Transmission | Transmission Type | — | Torque Converter |
| Number of Gears (Forward / Reverse) | — | 46055 | |
| Maximum Travel Speed | km/h | 35 | |
| Parking Brake | — | Automatic Air-Cut Brake | |
| Service Brake | — | Oil-Immersed Multi-Disc Brakes on Front & Rear Axles | |
| Hydraulics | Hydraulic Pump Type | — | Gear Pump |
| Hydraulic Flow / Pressure | L/min / bar | 100 | |
| Tank Capacities | Engine Oil | L | 5.5 |
| Hydraulic Oil | L | 70 | |
| Fuel Tank | L | 95 | |
| Noise & Vibration | Noise at Driving Position (Lpa) | dB | 82 |
| Noise to Environment (Lwa) | dB | 105 | |
| Hand/Arm Vibration | m/s² | <2.50 | |
| Miscellaneous | Steering Wheels (Front / Rear) | — | 2/2 |
| Drive Wheels (Front / Rear) | — | 2/2 | |
| Safety Cab Homologation | — | FOPS Level 2 Cab |
*LƯU Ý: Thông số kỹ thuật và cấu hình có thể thay đổi do việc nâng cấp và cải tiến sản phẩm liên tục mà không cần thông báo trước. Tất cả thông tin chỉ mang tính tham khảo và một số tính năng là tùy chọn. Vui lòng liên hệ với đội ngũ bán hàng quốc tế của chúng tôi để xác nhận. Thông số kỹ thuật và cấu hình cuối cùng sẽ tuân theo hợp đồng chính thức được ký kết giữa hai bên.
