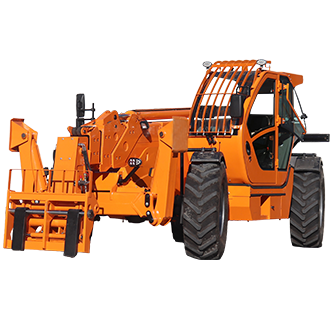

5 Ton Telehandler
FT50
Đặc trưng
A longer working envelope for heavy material placement
The FT50 moves into a different class of application with its three-stage 13.6 m boom and 5-ton payload. It is designed for customers who need to position heavier materials farther from the machine and at greater height than conventional material-handling equipment can comfortably achieve.
Chassis tilt adds another level of site adaptability
The integrated chassis tilt function gives operators an additional method of adapting the machine's working position to uneven or changing ground conditions. This becomes particularly valuable when long-reach operations demand careful machine positioning before the load is placed.
The 1.8-ton counterweight supports the heavy-duty configuration
A 1.8-ton cast counterweight works with the BS1000 high-strength steel structure to support the machine's high-capacity, long-boom configuration. The emphasis is on balancing payload, reach and machine stability as a complete system.
Hydraulic control is designed for demanding load placement
A variable-displacement load-sensitive pump and dedicated proportional hydraulic control provide responsive operation according to the work being performed. This allows the operator to make controlled movements during lifting and attachment positioning, particularly when working toward the outer part of the boom's range.
Heavy-load information is available at the point of handling
The integrated weighing system provides claimed 0.5% accuracy, while load moment limitation helps the operator monitor changing load conditions. Electric seat adjustment and seat heating complement the climate-controlled cab for operators who spend long periods on demanding telehandler construction tasks. For customers comparing a large telehandler, the FT50 combines reach, payload and machine-level adaptability rather than relying on capacity alone.
THÔNG SỐ KỸ THUẬT
| Main Performance | Maximum Capacity | kg | 5000 |
| Maximum Lift Height | m | 13.6 | |
| Maximum Outreach | m | 7 | |
| Weight & Dimensions | Overall Length to Carriage | m | 6.4 |
| Length to Face of Forks | m | 7.62 | |
| Overall Width | m | 2.4 | |
| Overall Height | m | 2.55 | |
| Wheelbase | m | 3.15 | |
| Ground Clearance | m | 0.38 | |
| Overall Cab Width | m | 0.84 | |
| Tilt-Up Angle | ° | 12 | |
| Tilt-Down Angle | ° | 114 | |
| External Turning Radius (Over Tires) | m | 4.1 | |
| Unladen Weight (with Forks) | kg | 13300 | |
| Tires | Tire Type | — | Tubeless |
| Standard Tire Size | — | 440/80-24 | |
| Forks | Fork Length / Width / Section | mm | 1220 × 125 / 50 |
| Performance | Lifting Time | s | 18 |
| Lowering Time | s | 14.4 | |
| Extension Time | s | 17.9 | |
| Retraction Time | s | 16.5 | |
| Crowd Time | s | 5.1 | |
| Dump Time | s | 4 | |
| Engine | Engine Brand | — | YUCHAI |
| Engine Model | — | YCD4J22T-125 | |
| Rated Power | kW | 91 | |
| Transmission | Transmission Type | — | Torque Converter |
| Number of Gears (Forward / Reverse) | — | 46116 | |
| Maximum Travel Speed | km/h | 40 | |
| Parking Brake | — | Automatic Air-Cut Brake | |
| Service Brake | — | Oil-Immersed Multi-Disc Brakes on Front & Rear Axles | |
| Hydraulics | Hydraulic Pump Type | — | Gear Pump |
| Hydraulic Flow / Pressure | L/min / bar | 167 / 265 | |
| Tank Capacities | Engine Oil | L | 5.5 |
| Hydraulic Oil | L | 70 | |
| Fuel Tank | L | 95 | |
| Noise & Vibration | Noise at Driving Position (Lpa) | dB | 82 |
| Noise to Environment (Lwa) | dB | 105 | |
| Hand/Arm Vibration | m/s² | <2.50 | |
| Miscellaneous | Steering Wheels (Front / Rear) | — | 2/2 |
| Drive Wheels (Front / Rear) | — | 2/2 | |
| Safety Cab Homologation | — | FOPS Level 2 Cab |
*LƯU Ý: Thông số kỹ thuật và cấu hình có thể thay đổi do việc nâng cấp và cải tiến sản phẩm liên tục mà không cần thông báo trước. Tất cả thông tin chỉ mang tính tham khảo và một số tính năng là tùy chọn. Vui lòng liên hệ với đội ngũ bán hàng quốc tế của chúng tôi để xác nhận. Thông số kỹ thuật và cấu hình cuối cùng sẽ tuân theo hợp đồng chính thức được ký kết giữa hai bên.

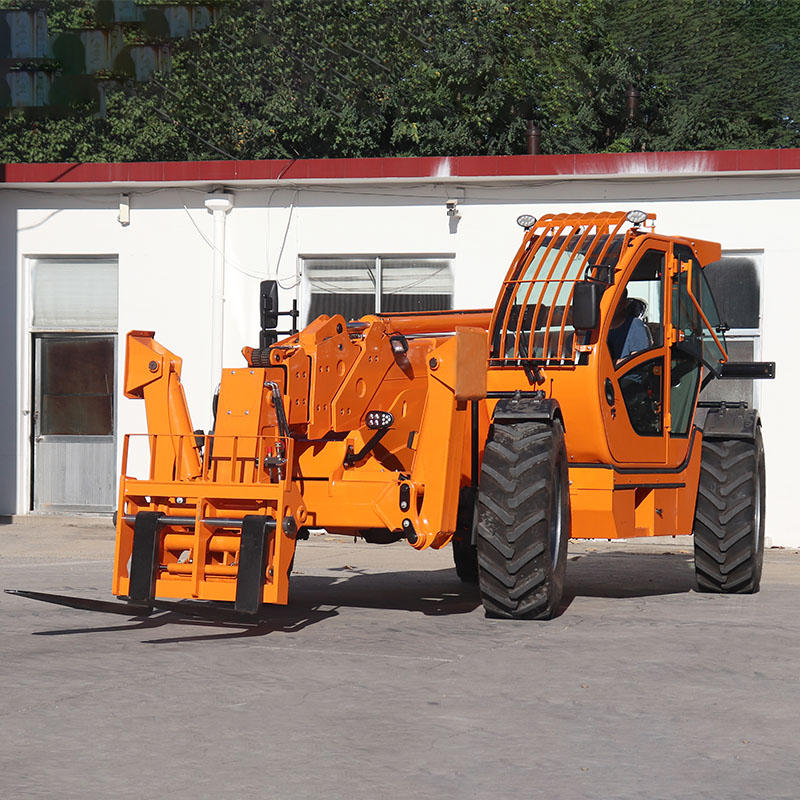

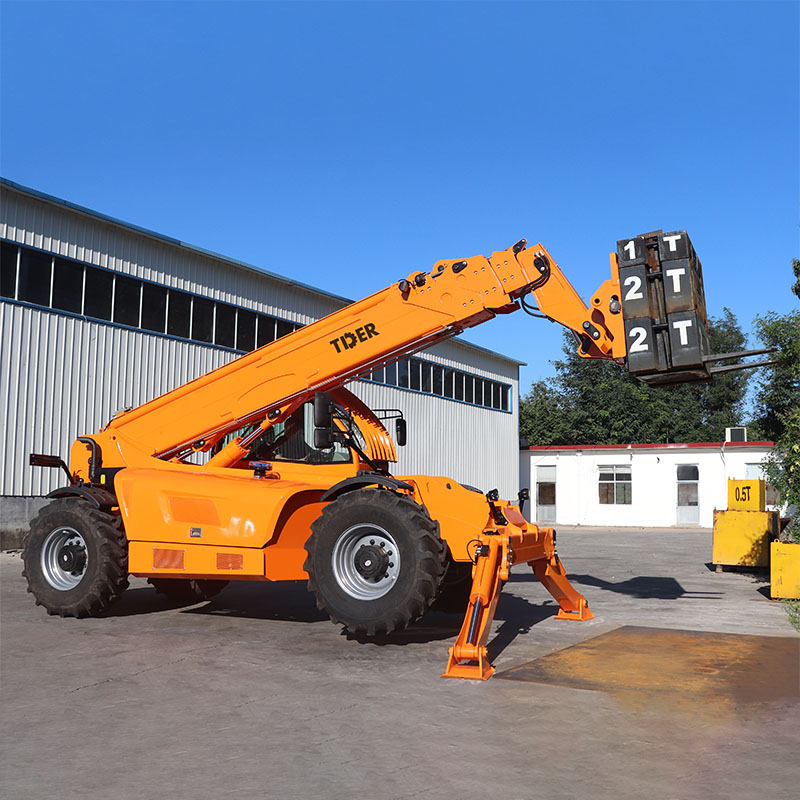

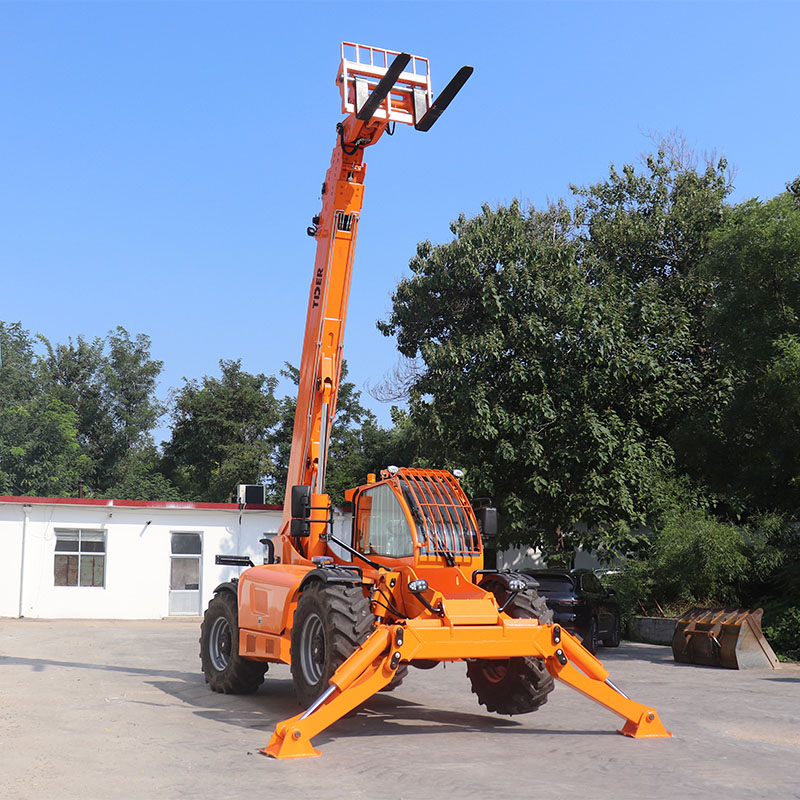

Trưng bày sản phẩm
