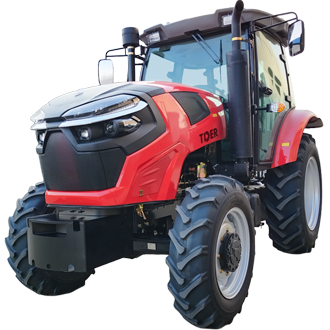

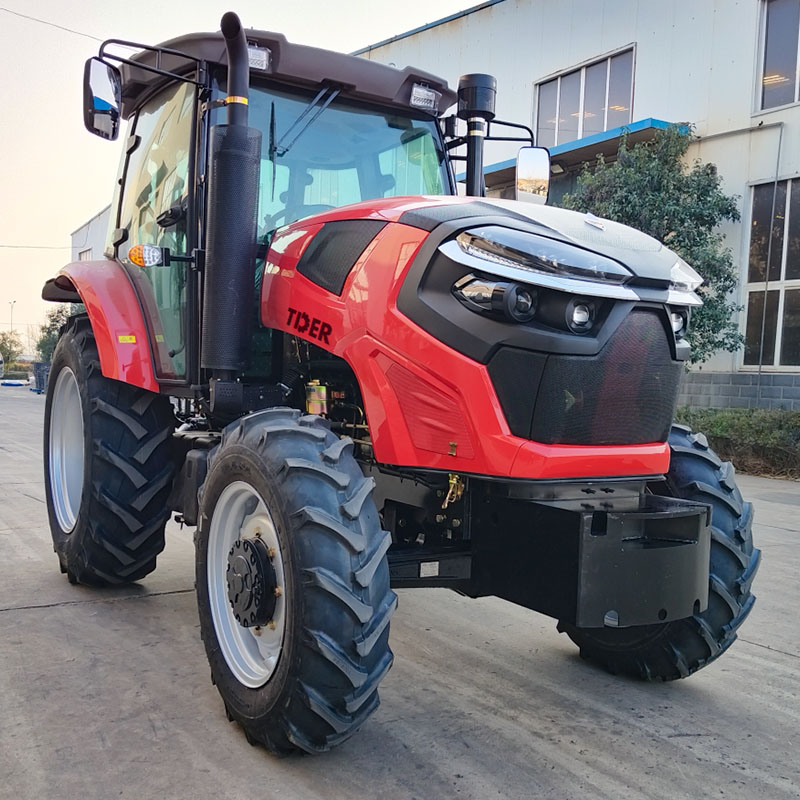

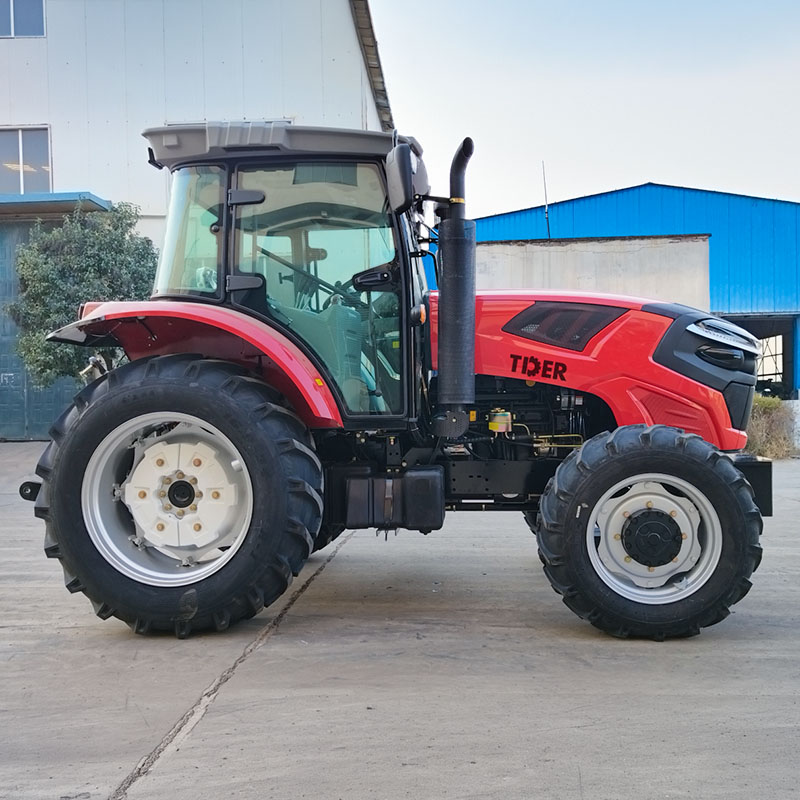

Name: 130HP Tractor for Farm Equipment
Availability: InStock

Đặc trưng
THÔNG SỐ KỸ THUẬT
Trưng bày sản phẩm
Câu hỏi thường gặp
Sản phẩm liên quan

Đặc trưng

More Productive Field Passes

The TD1304 combines 130HP output with strong traction and a high-capacity three-point linkage, making it suitable for operations where larger implements can cover more ground in each pass. It is designed for users seeking higher field productivity rather than simply additional engine output.

Multi-Implement Hydraulic Configuration

Optional 1–3 section multi-way valves can operate hydraulic functions on equipment such as folding harrows and reversible plows. Together with three hydraulic outlets, this provides greater flexibility when configuring equipment for combined field operations.

Six-Cylinder Platform for High-Load Work

The Dongfanghong LR6M5-T174-U2 six-cylinder diesel engine provides the sustained power required for heavy cultivation, soil preparation, and transportation. The four-wheel-drive system helps maintain traction when available power needs to be transferred under demanding ground conditions.

THÔNG SỐ KỸ THUẬT

Specification	Unit	TD1304
Drive Type	/	4-Wheel Drive (4×4)
Rated Power	kW	95.6
Length × Width × Height (Cabin)	mm	4880 × 2100 × 3050
Length × Width × Height (ROPS)	mm	4880 × 2100 × 2930
Wheel Base	mm	2510
Minimum Ground Clearance (Front Axle Drain Bolt)	mm	410
Minimum Operating Mass (Cabin)	kg	4600
Minimum Operating Mass (ROPS)	kg	4350
Front Tread	mm	1620 (1620–1820), Adjustable
Rear Tread	mm	1620 (1620–1820), Adjustable
Clutch Type	/	Dry-Type, Double-Acting
Engine Model	/	YTO 6-Cylinder Diesel Engine (National II Emission Standard)
Rated Speed	r/min	2200
Gear Range	/	24 Forward + 8 Reverse
PTO Type	/	8 Spline, Φ38, Type I (Optional: 6 Spline)
PTO Rated Power	kW	≥81.3
PTO Speed	r/min	760/1000 or 760/850 or 540/1000

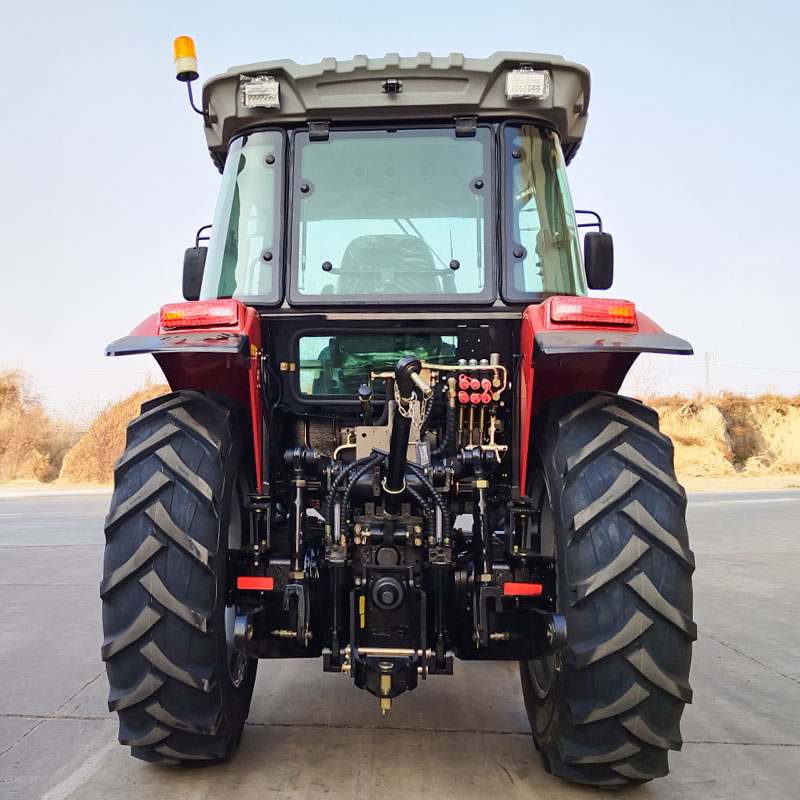

Three-Point Linkage	/	Rear Mounted, Three-Point Suspension, Category II
Hydraulic Output	/	3-Group Hydraulic Valve
Hydraulic Adjustment Mode	/	Forced Hydraulic System, Position Control and Floating Control
Maximum Lifting Force at 610mm Frame Center	kN	≥23.0
Front / Rear Balance Weight	kg	440 / 90
Standard Tire Size (Front / Rear)	/	12.4-24 / 16.9-34
Optional Tire Size (Type I)	/	13.6-24 / 16.9-38
Available Options	/	Cabin, Air Brake, ROPS Safety Frame, Sunroof

Trưng bày sản phẩm

Why Choose TDER?

20+ Years of Expertise

158 Countries Served

42,000㎡ of Advanced Production

Over $91M+ Annual Sales

Câu hỏi thường gặp

Are you a manufacturer or trading company?

TDER is a China-based manufacturer with over 20 years of experience in machinery production and export. Our machines have been exported to 158 countries. We have our own factory covering 42,000 m², integrating R&D, manufacturing, and global sales.

What payment terms do you accept?

We support T/T, L/C, and O/A. Usually, a 30% deposit is required, and the remaining 70% balance should be paid before delivery.

I am a first-time importer and don’t know the import process. What should I do?

We provide full guidance for the import process, from documentation to customs clearance, to ensure a smooth transaction.

What is the delivery time?

Normally, it takes 15–30 days to ship after receiving your deposit. Standard products in stock can be shipped immediately, while customized products may require longer, depending on your order requirements.

What about warranty?

Generally, we offer a 12-month or 2,000 working hours warranty, whichever comes first. Some products may have longer or shorter warranty periods, so please confirm with our sales team before placing your order.

Do you supply spare parts?

Customers can purchase consumable parts together with the machine. For any future replacement, we provide genuine parts at cost price. Parts will be shipped via international express, usually arriving within 7–10 days.

Do you have international certifications?

All our products have CE certification and meet international standards. If you require additional certifications, please consult with our sales team for detailed information.

Can the machine be customized?

Yes, we support OEM/ODM customization including engine brand, color, attachments, and specifications etc.
