Name: 100HP Tractor by Experienced Tractor Manufacturer
Availability: InStock

Đặc trưng
THÔNG SỐ KỸ THUẬT
Trưng bày sản phẩm
Câu hỏi thường gặp
Sản phẩm liên quan

Đặc trưng

High-Torque Power for Heavy Pulling

The TB1004 provides the torque reserve and traction required for heavier agricultural applications. Its 100HP power platform is suited to demanding tillage, towing, transport, and large-implement operations where sustained pulling performance is important.

12F+12R Shuttle Transmission for Better Power Matching

The 12F+12R shuttle transmission provides a broad selection of working speeds while making directional changes easier. The practical speed matching allows operators to keep the engine and implement working conditions better coordinated across different field tasks, helping convert available engine power into productive work.

Independent Controls for Smoother Implement Operation

The independent clutch arrangement makes gear shifting and PTO engagement more convenient when connecting or operating agricultural implements. Full hydraulic steering and side-mounted controls further reduce operating effort, giving the operator more direct control over tractor movement and implement-related tasks.

Practical Details for Longer Working Seasons

The redesigned hood improves access for cleaning and maintenance while promoting engine-compartment ventilation. Enhanced front headlights provide better visibility for early-morning or evening operations, allowing the TB1004 to remain productive when agricultural schedules extend beyond normal daylight hours.

THÔNG SỐ KỸ THUẬT

Drive Type	—	4×4
Rated Power	kW	74
Overall Dimensions (L × W × H)	mm	3945 × 1860 × 2730
Wheelbase	mm	2110
Minimum Ground Clearance	mm	350
Minimum Operating Mass	kg	3000
Front Tread	mm	1400 (1200–1600), Adjustable
Rear Tread	mm	1400 (1300–1600), Adjustable
Clutch Type	—	Dry-Type, Double-Acting
Engine	—	4-Cylinder
Rated Speed	r/min	2400
Gear / Transmission	—	12F + 12R
PTO Type	—	Same
PTO Rated Power	kW	≥63
PTO Speed	r/min	540/720; 540/1000

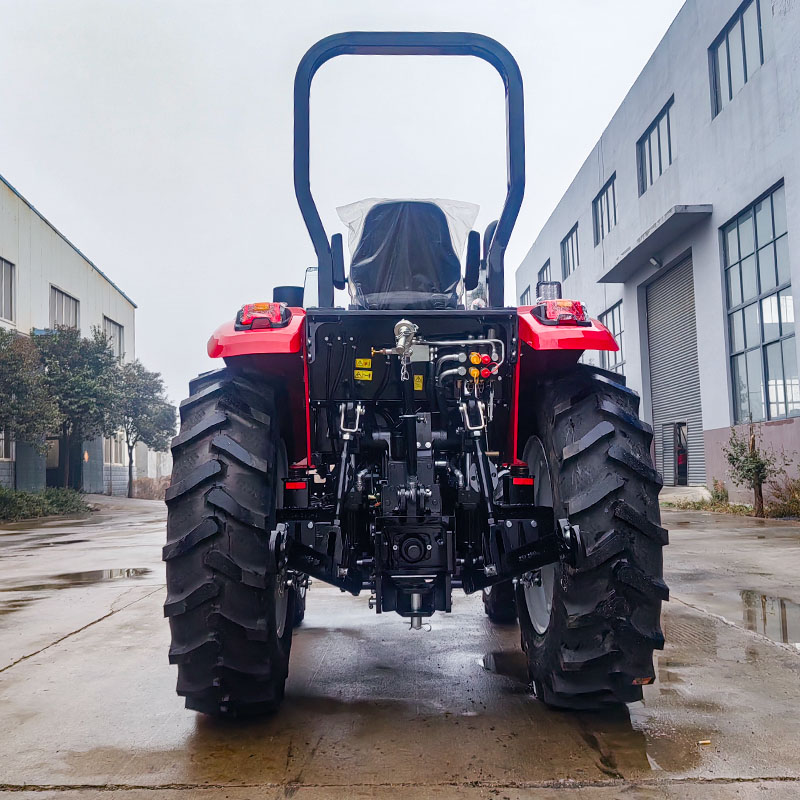

Three-Point Linkage	—	Rear, 3-Point Suspension, CAT II
Hydraulic Output	—	2-Way Valve
Hydraulic Adjustment Mode	—	Same
Maximum Lifting Force at 610 mm Frame Center	kN	≥20.2
Standard Tire Size (Front/Rear)	—	8.3-24 / 14.9-30
Optional Tire I	—	9.5-24 / 16.9-30
Optional Tire II	—	8.3-20 / 12.4-28
Heated Cabin	—	Optional
ROPS	—	Optional
ROPS with Sunroof	—	Optional

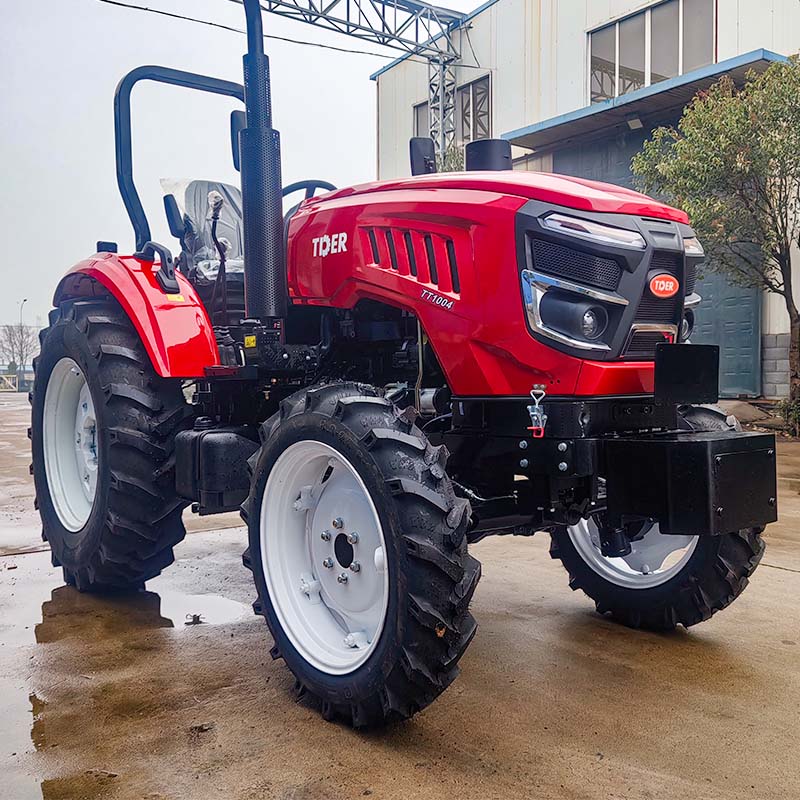

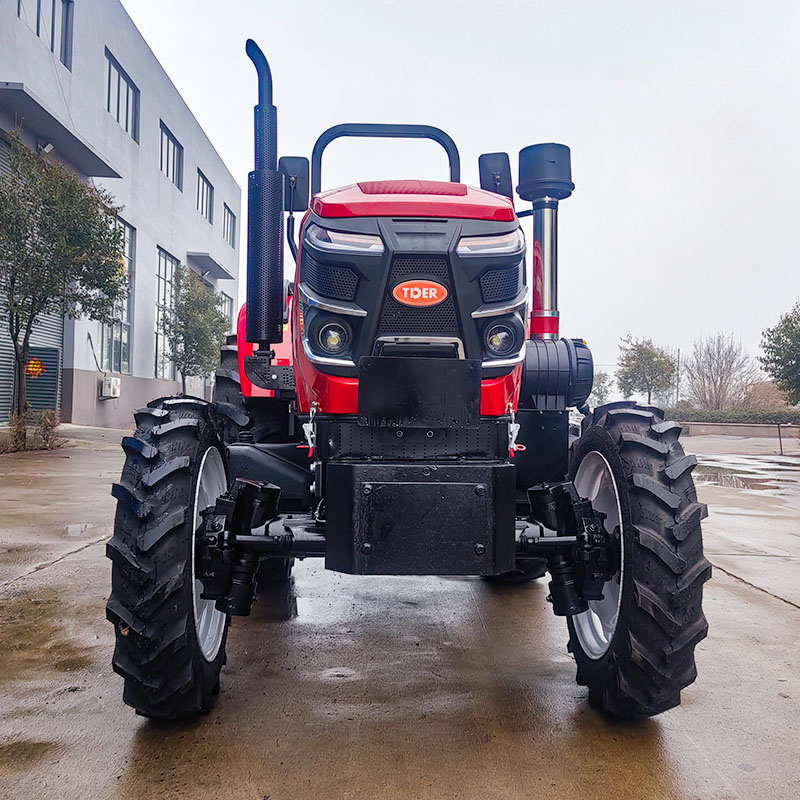

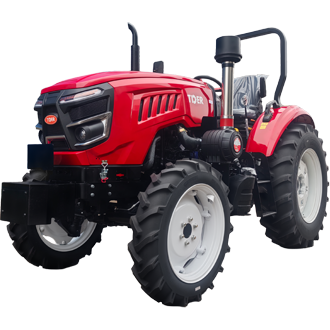

Trưng bày sản phẩm

Why Choose TDER?

20+ Years of Expertise

158 Countries Served

42,000㎡ of Advanced Production

Over $91M+ Annual Sales

Câu hỏi thường gặp

Are you a manufacturer or trading company?

TDER is a China-based manufacturer with over 20 years of experience in machinery production and export. Our machines have been exported to 158 countries. We have our own factory covering 42,000 m², integrating R&D, manufacturing, and global sales.

What payment terms do you accept?

We support T/T, L/C, and O/A. Usually, a 30% deposit is required, and the remaining 70% balance should be paid before delivery.

I am a first-time importer and don’t know the import process. What should I do?

We provide full guidance for the import process, from documentation to customs clearance, to ensure a smooth transaction.

What is the delivery time?

Normally, it takes 15–30 days to ship after receiving your deposit. Standard products in stock can be shipped immediately, while customized products may require longer, depending on your order requirements.

What about warranty?

Generally, we offer a 12-month or 2,000 working hours warranty, whichever comes first. Some products may have longer or shorter warranty periods, so please confirm with our sales team before placing your order.

Do you supply spare parts?

Customers can purchase consumable parts together with the machine. For any future replacement, we provide genuine parts at cost price. Parts will be shipped via international express, usually arriving within 7–10 days.

Do you have international certifications?

All our products have CE certification and meet international standards. If you require additional certifications, please consult with our sales team for detailed information.

Can the machine be customized?

Yes, we support OEM/ODM customization including engine brand, color, attachments, and specifications etc.
