Concrete Pump

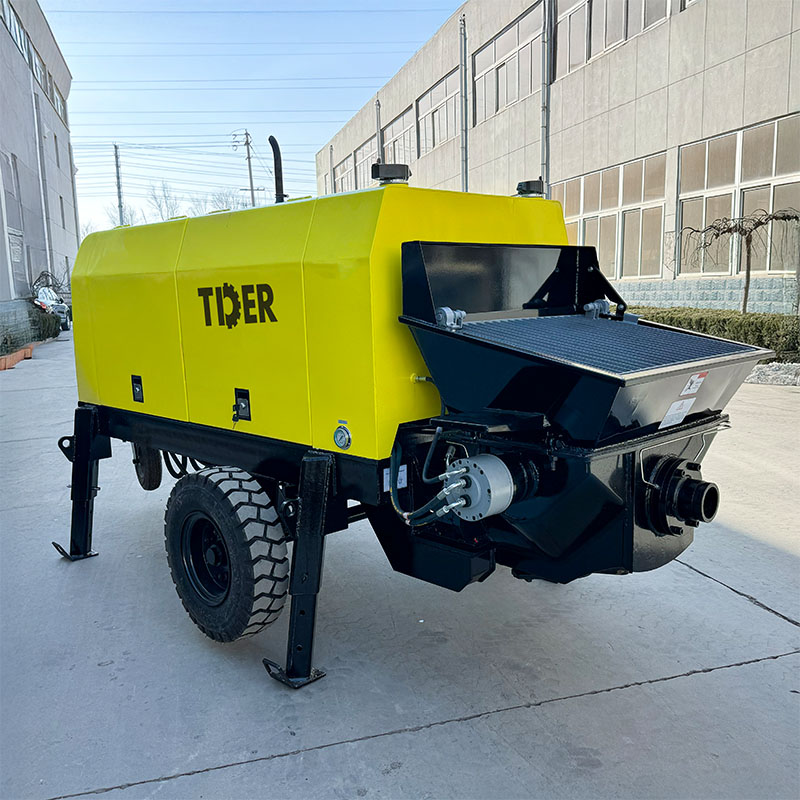

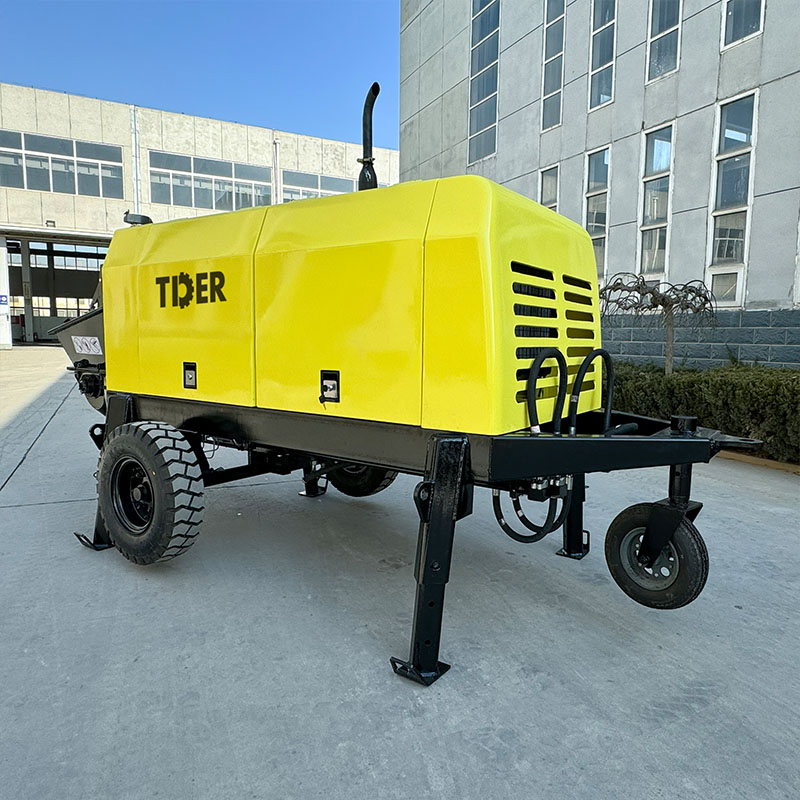

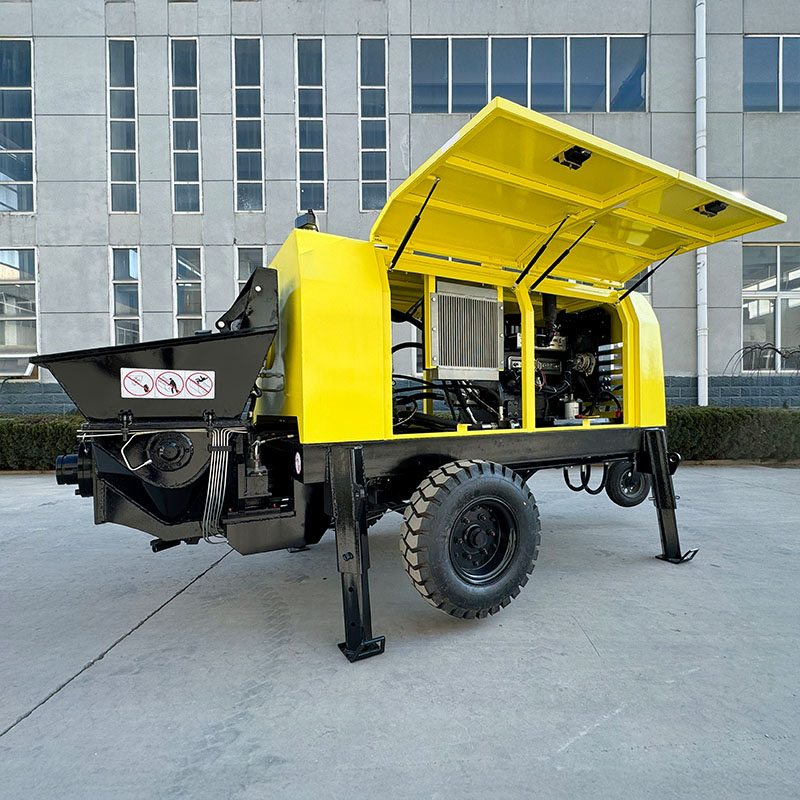

TCP20-08-40R
Features
Diesel Power & Intelligent Fuel-Efficient Pumping System
The high-performance diesel engine (39.6kW) enables stable operation in remote and off-grid construction sites, making the system ideal for highways, bridges, tunnels, mining, and water conservancy projects. Integrated with intelligent automatic speed regulation technology, the system continuously adjusts engine output according to pumping pressure, ensuring optimal fuel efficiency, preventing overspeed damage, and maintaining smooth, stable pumping performance under variable load conditions.
High-Pressure Stable Pumping System for Long-Distance Delivery
With a maximum theoretical output of 20/11 m³/h and pumping pressure up to 8MPa, the system delivers strong and consistent concrete flow for both vertical and horizontal long-distance applications (up to 120m vertical and 300m horizontal). This ensures reliable material delivery in complex construction environments such as high-rise buildings, bridges, and infrastructure projects, significantly improving working efficiency and reducing pipeline blockage risk.
Industrial-Grade Hydraulic & Valve System for Reliable Operation
Equipped with Hefei hydraulic pump and Taiwan North Precision valve system, the machine provides stable hydraulic response, precise control, and strong resistance to harsh working conditions. The integrated electro-hydraulic system ensures continuous pumping stability, reduces downtime, and enhances long-term durability in heavy-duty construction environments.
Heavy-Duty Pumping Structure for Wear Resistance and Durability
The Φ120×900mm large-stroke pumping cylinder combined with a 300L high-position hopper ensures smooth concrete suction and discharge efficiency. The robust structural design minimizes wear, improves material flow consistency, and supports long-duration continuous pumping operations with reduced maintenance frequency.
Compact and Mobile Design for Flexible Jobsite Deployment
With a compact 4150×1800×1725mm structure and total weight of 2.5 tons (3.8 tons with pipeline system), the unit is easy to transport and quickly deploy on different job sites. This mobility advantage makes it highly suitable for small-to-medium construction teams requiring fast relocation and flexible operation.
Specifications
| Max. Theoretical Concrete Output (Low / High Pressure) | m³/h | 20 / 11 |
| Max. Concrete Pumping Pressure (High / Low Pressure) | MPa | 8 / 4 |
| Max. Pumping Distance (Vertical / Horizontal) | m | 120 / 300 |
| Concrete Delivery Cylinder (Bore × Stroke) | mm | Φ120 × 900 |
| Hopper Capacity × Feeding Height | L × mm | 300 × 1050 |
| Diesel Engine Power | kW | 39.6 |
| Hydraulic Oil Tank Capacity | L | 120 |
| Diesel Fuel Tank Capacity | L | 80 |
| Max. Aggregate Size (Pipe Φ76 mm) | mm | 25 |
| Max. Aggregate Size (Pipe Φ89 mm) | mm | 30 |
| Distribution Valve Type | / | S Tube Valve |
| Machine Weight | kg | 2500 |
| Overall Dimensions (L × W × H) | mm | 4150 × 1800 × 1725 |
| Standard Delivery Pipeline Length | m | 100 |
| Total Weight | kg | 3800 |
