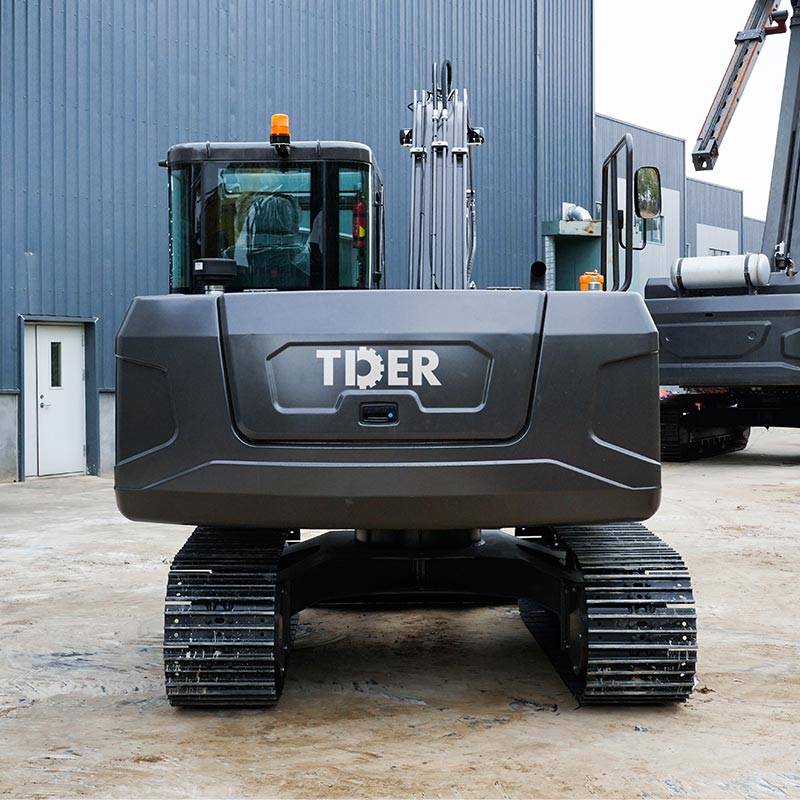

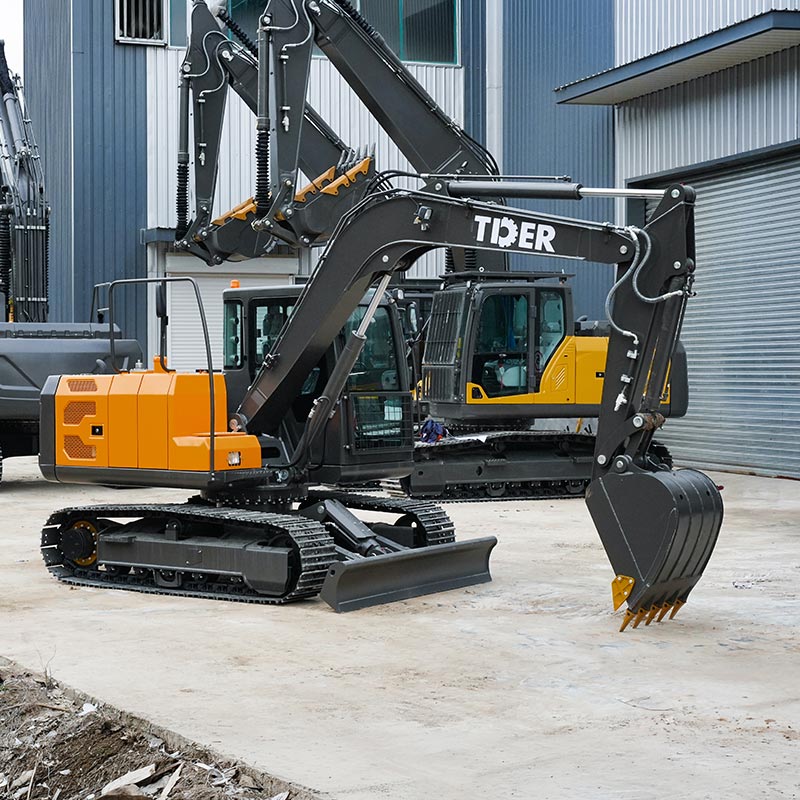

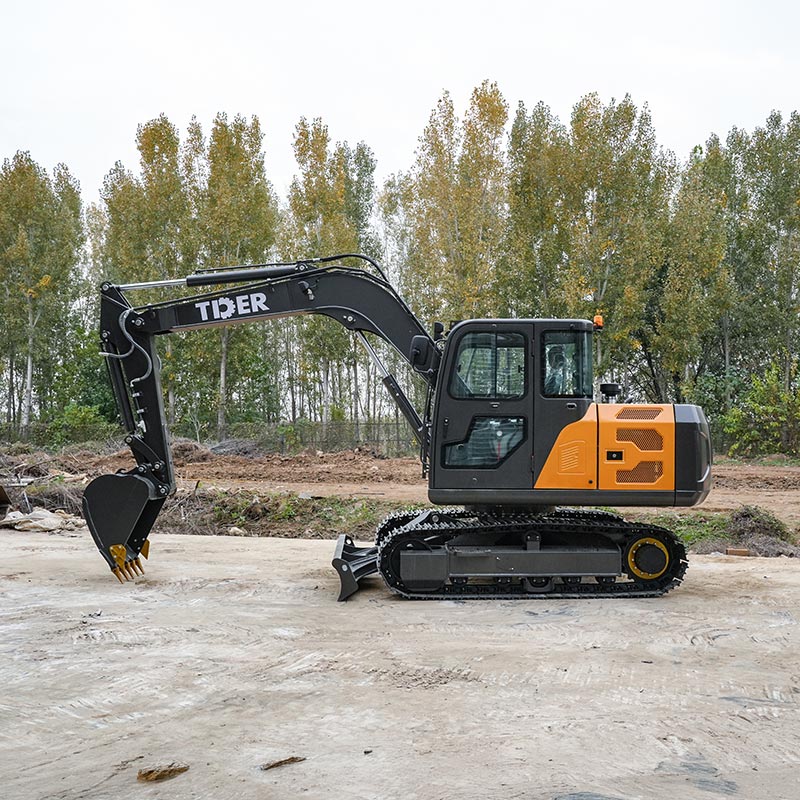

9 Ton Crawler Excavator
TCE90
Features
Cummins Engine for Reliable Global Performance
Powered by a Cummins QSF2.8 engine, the TCE90 provides high combustion efficiency, strong durability, and compliance with multiple emission standards including EPA and Euro regulations for global markets.
Load-Sensing Hydraulic System with U.S. Premium Valve Control
Equipped with a high-end hydraulic valve system combined with load-sensing pump technology, the machine delivers precise control, smoother operation, and improved digging efficiency under variable working loads.
Stronger Frame Built with FEA Design & Advanced Welding
The machine structure is fully optimized using 3D Creo design software and finite element analysis (FEA), combined with high-standard automated welding technology, ensuring superior structural stability and long-term durability under heavy-duty working conditions.
Improved Undercarriage Design for Anti-Mud Performance
Redesigned track frame structure reduces mud accumulation and minimizes wear on rollers, significantly improving undercarriage lifespan in harsh working environments.
Reinforced Push Arm with Improved 5° Lift Angle
The push arm is upgraded from thick plate to rectangular tube structure with additional cross-beam support, increasing rigidity and structural strength. The lifting angle is improved by 5°, enhancing overall machine ground clearance and terrain adaptability.
Sealed Cab with 30% Comfort Improvement
The redesigned cab improves sealing to reduce dust ingress, while a shock-absorbing seat reduces vibration impact, improving operator comfort by over 30% during long working hours.
Specifications
| Operating Weight | Kg | 9000 |
| Engine Model | Cummins QSF2.8 | |
| Rated Power | Kw | 53kW/2200rpm |
| Bucket Capacity | m³ | 0.4 |
| Max Digging Force | Kn | 58 |
| Swing Speed | rpm | 0-12 |
| Traveling Speed | km/h | 2.8 |
| Gradeability | ° | 70(35°) |
| Wroking Range | ||
| Max.Digging Height | mm | 7050 |
| Max.Dumping Height | mm | 5188 |
| Max.Digging Depth | mm | 4015 |
| Max.Vertical Digging Depth | mm | 3550 |
| Max.Digging Radius | mm | 6540 |
| Min.Swing Radius | mm | 2140 |
| Max.Dozer Blade Lifting Distance | mm | 370 |
| Max.Dozer Blade Cutting Distance | mm | 344 |
| Overall Dimensions | ||
| Overall Length | mm | 6410 |
| Overall Width | mm | 2278 |
| Overall Height | mm | 2630 |
| Cabin Height | mm | 2630 |
| Axle Base | mm | 2209 |
| Wheel(Track) Distance | mm | 1750 |
| Min.Ground Clearance | mm | 375 |
| Tail Swing Radius | mm | 1813 |
