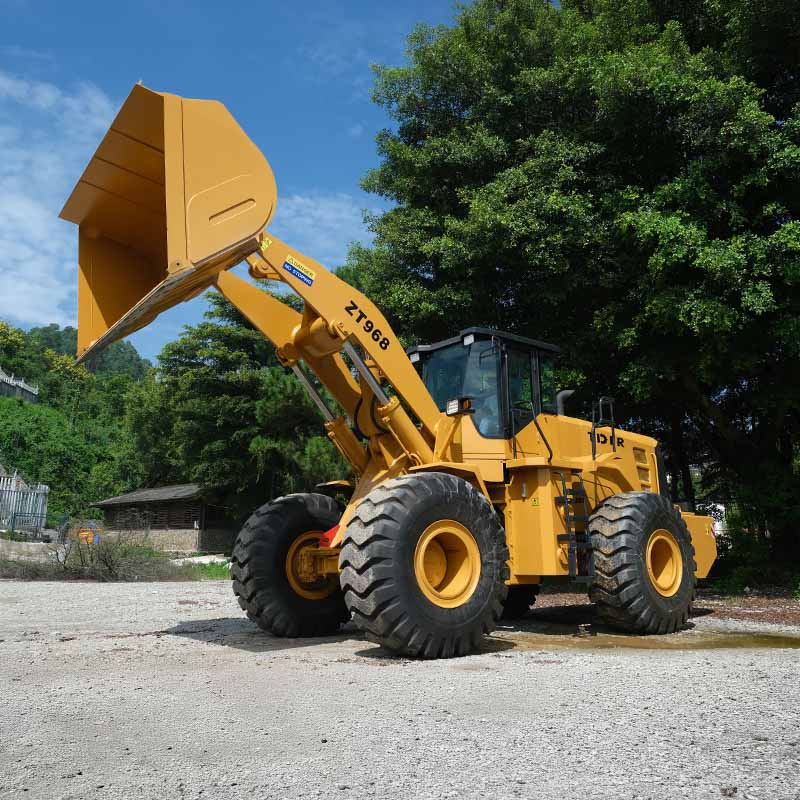

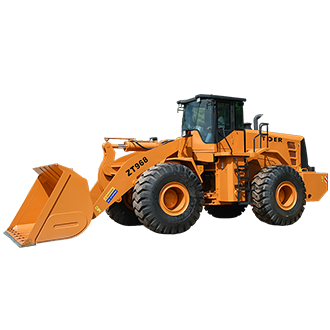

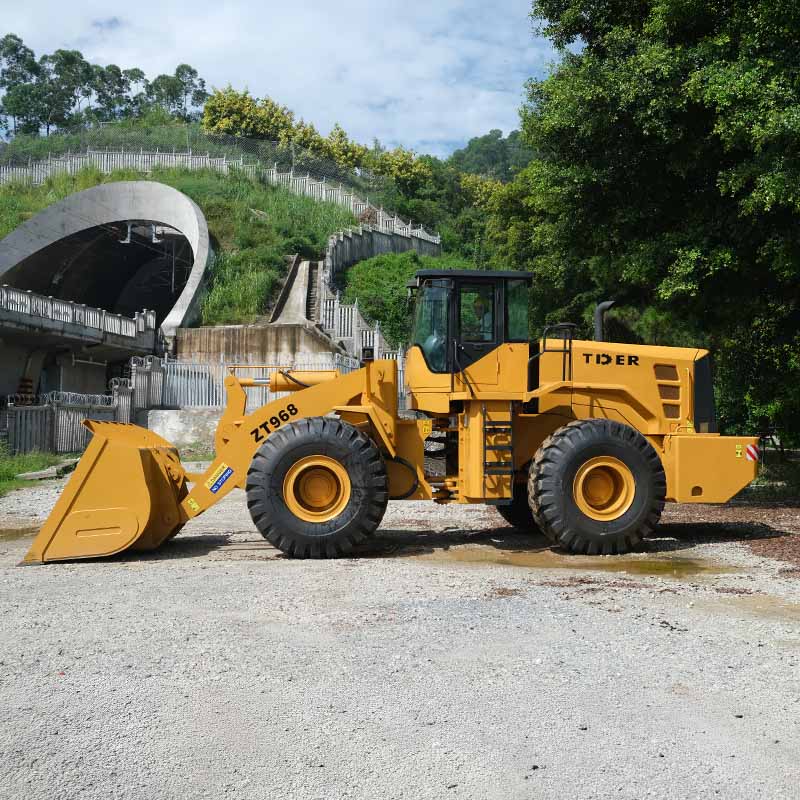

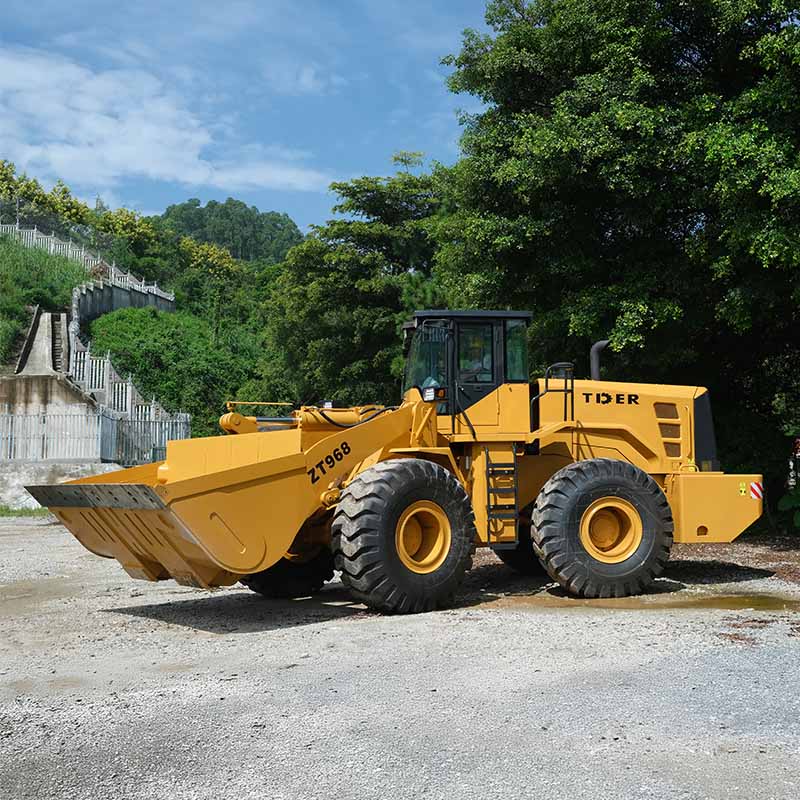

6 Ton Wheel Loader
ZT968
Features
SANY 60 Heavy-Duty Axle System for Strong Traction Performance
Equipped with a SANY 60 axle system, ZT968 delivers improved load-bearing capacity, enhanced traction performance, and superior shock resistance under heavy-duty working conditions. As a widely proven system in construction machinery, it ensures long-term structural durability and stable operation.
Higher Payload Efficiency with 6-Ton Working Capacity
ZT968 is designed with a 6-ton rated load capacity and a 3.5–4 m³ reinforced bucket, significantly increasing material handling volume per cycle. Combined with an optimized lifting height of up to 3.4 meters, the machine improves truck loading efficiency and reduces working cycles in bulk material transfer operations.
Premium Tire System for Global Working Conditions
Optional quick hitch hydraulic system allows fast switching between forks, grass grapple, log grapple, 4-in-1 bucket, and snow blade, significantly expanding machine application scenarios and improving work efficiency while maximizing return on investment and machine utilization rate.
Adaptive Power Transmission System for Different Working Demands
ZT968 is designed with a flexible transmission platform that allows optimized power matching for different working conditions and customer requirements. This system ensures efficient torque delivery, smooth gear shifting, and stable operation performance across various loading and transport applications.
Multiple transmission solutions are available, including Yitong gearbox, Hangchi system, and ZF-based technology options, providing a balanced combination of performance, durability, and cost flexibility.
Specifications
| Rated Load | kg | 6000 |
| Bucket Width | mm | 3160 |
| Bucket Capacity | m³ | 3.5-4 |
| Overall Dimension | mm | 8250*3210*3640 |
| Operating Weight | kg | 19500 |
| Max. Dumping Height | mm | 3600 |
| Max. Dumping Distance | mm | 1300 |
| Wheel Base | mm | 3100 |
| Wheel Tread | mm | 2280 |
| Engine | Weichai | |
| Rated Power | kw | 175 |
| Rated Speed | r/min | 2200 |
| Tire Size | 26.5-25 |
