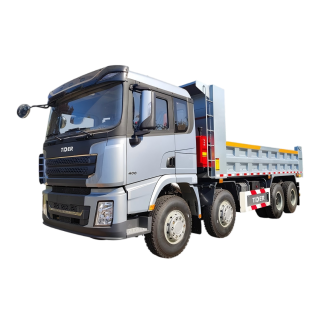

40 Ton Dump Truck
ZMDT400
Features
High-Performance Cummins Engine
Powered by a Cummins 420HP heavy-duty engine integrated with a hydraulic retarder system, the drivetrain delivers strong continuous hauling power with enhanced downhill braking control. Compliant with Euro III emission standards, it ensures stable fuel-efficient performance and safer operation in long-distance and heavy-load mining applications.
Heavy-Duty 8×4 Mining Chassis for Extreme Load Transport
The reinforced 8×4 drivetrain architecture with dual-stage HD casting axle and 5.262 ratio design provides exceptional load distribution and traction performance, enabling stable operation under continuous overloading and harsh mine terrain conditions.
High-Capacity U-Shape Dump Body for Efficient Material Handling
A 7400×2300×1500mm U-shaped dump body with front lift design improves material discharge efficiency, reduces residue buildup, and increases cycle productivity in mining, quarrying, and large-scale earthmoving operations.
Reinforced Frame & Suspension for Long-Term Structural Durability
The 850×300 mm reinforced chassis combined with multi-leaf spring suspension and four-point hydraulic cab mounting system significantly improves impact resistance and vibration absorption, ensuring durability under continuous heavy-duty hauling cycles.
International-Grade Transmission & Brake Control System
Equipped with 12-speed heavy-duty transmission and WABCO multi-channel ABS system, the vehicle delivers precise gear shifting, enhanced braking control, and improved driving safety in complex downhill mining roads.
Driver-Centric Comfort & Safety Cabin System
X3000 long flat-top cabin with hydraulic suspension seat, automatic climate control, electric windows, LED lighting, and ECE-certified safety glass provides a comfortable and fatigue-reducing working environment for long-hour mining operations.
Smart Fleet Management & Maintenance Efficiency Package
Integrated telematics system, maintenance-friendly layout, protective guards, and full onboard tool kit improve fleet monitoring, reduce downtime, and simplify daily maintenance in mining operations.
Specifications
| Vehicle Type | - | X3000 8×4 Dump Truck |
| Drive Type | - | 8×4 |
| Steering Position | - | Left-Hand Drive (LHD) |
| Cabin | - | X3000 Medium-Long Flat Roof Cabin, Without Roof Air Deflector |
| Driver Seat | - | Hydraulic Suspension Seat |
| Air Conditioner | - | Electronic Automatic Constant-Temperature Air Conditioner |
| Cabin Tilting | - | Manual Tilting |
| Cabin Suspension | - | Four-Point Hydraulic Suspension |
| Rearview Mirror | - | Standard Rearview Mirror |
| Window Regulator | - | Electric Window Regulator (Mabuchi Motor) |
| Front Bumper | - | Metal Bumper with Lamp Protection Mesh |
| Boarding Step | - | Three-Step Boarding Ladder |
| Engine Model | - | ISME420 30 + FHB400 Retarder |
| Engine Power | hp | 420 |
| Emission Standard | - | Euro III |
| Transmission | - | 12JSD200T-B Iron-Clad QH50 |
| Wheelbase | mm | 1800 + 3575 + 1400 |
| Front Axle | T | MAN 9.5T |
| Rear Axle | T | 16T HD Double Reduction Cast Axle |
| Axle Ratio | - | 5.262 |
| Chassis Frame | mm | 850 × 300 (8+7) |
| Suspension | - | Front & Rear Multi-Leaf Springs, 4 Main Leaves + 4 U-Bolts |
| Fuel Tank Capacity | L | 300 |
| Tire Size | - | 315/80R22.5 |
| Dump Body Type | - | U-Type Dump Body |
| Dump Body Dimensions (L×W×H) | mm | 7400 × 2300 × 1500 |
| Hoist Type | - | Front Hydraulic Lifting |
| Tarpaulin | - | Electric Tarpaulin |
| Air Filter | - | Standard Air Filter |
| Exhaust System | - | Standard Exhaust |
| Clutch | - | Imported Clutch |
| Telematics System | - | SHACMAN Telematics (Terminal Only) |
| Radiator Protection Grille | - | Equipped |
| Rear Stabilizer Bar | - | Equipped |
| Tail Lamp Protection Grille | - | Equipped |
| Battery Capacity | Ah | 180 |
| Battery Type | - | Maintenance-Free Battery |
| Air Reservoir | - | Iron Air Tank |
| ABS System | - | WABCO 6-Channel ABS |
| Reverse Buzzer | - | Equipped |
| Fire Extinguisher | kg | 2 |
| Daytime Running Lights | - | LED |
| Spare Tire | pcs | 1 Additional Spare Tire |
| Air Compressor | - | Jackseal Technology Compressor |
| Tool Box | - | Deluxe Onboard Tool Box |
| Cabin Flip Labels | - | Spanish Version |
| Vehicle Logo | - | Silver Lettering & Silver SHACMAN Logo |
| Product Labels | - | Full English Labels |
| E-Mark Certification | - | Lamps, Seat Belts, Tires and Glass with E-Mark |
| ECE Certificate | - | Provided, Matching Vehicle E-Mark Numbers |

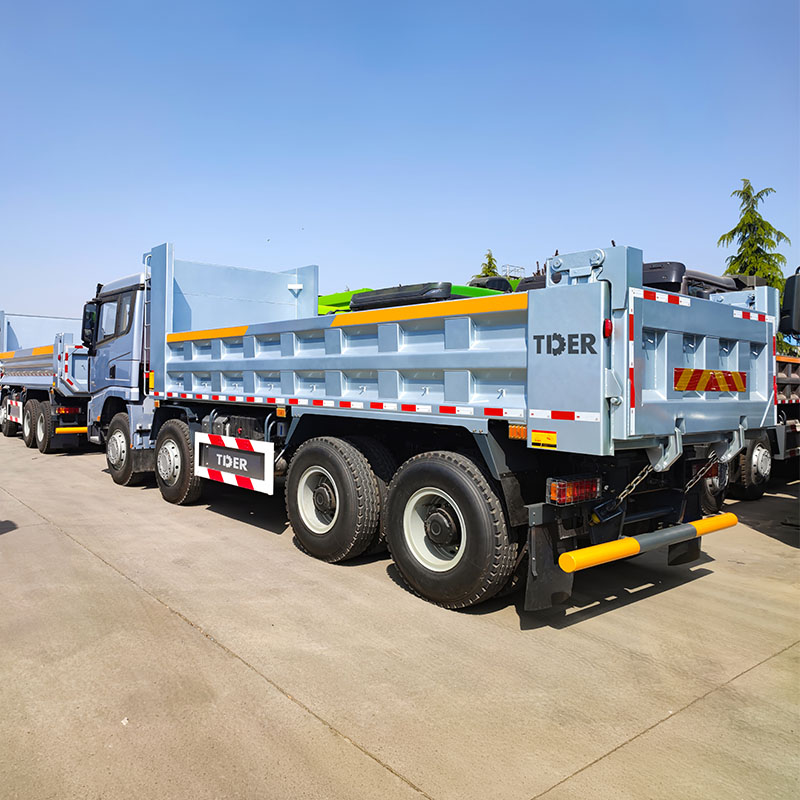

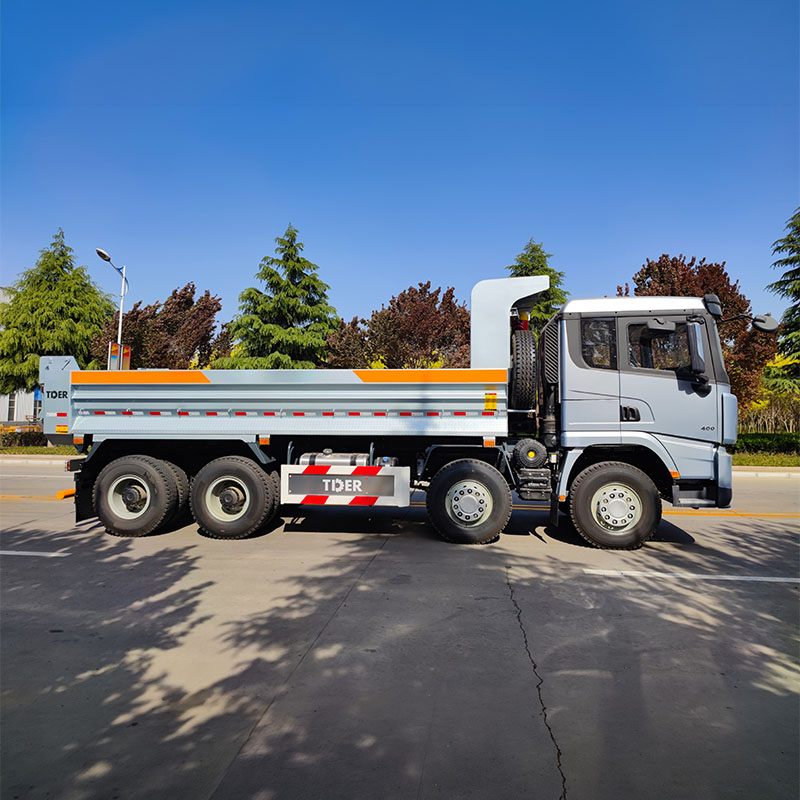

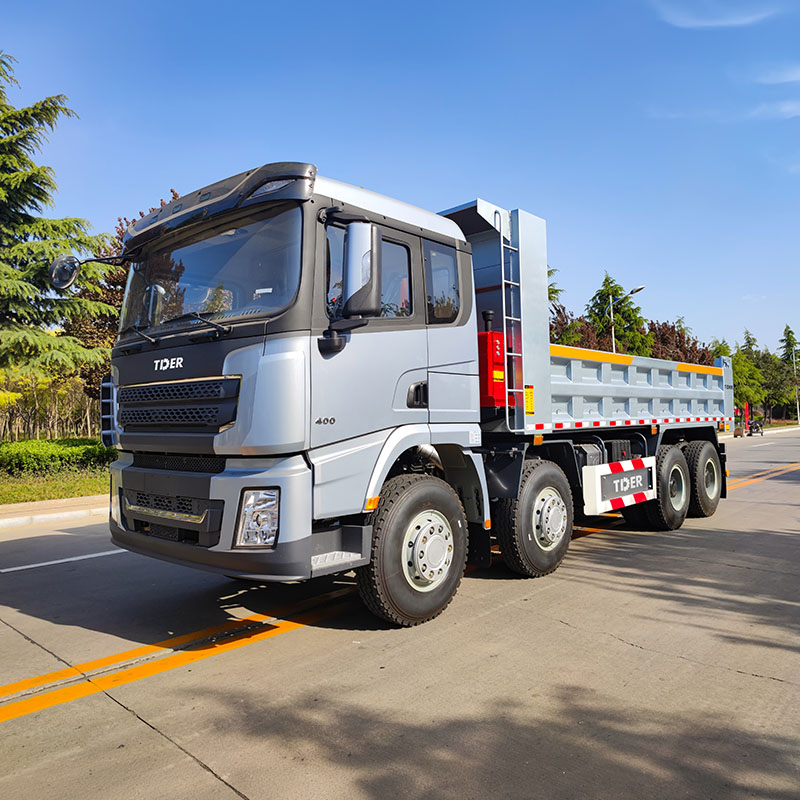

Product Showcase
