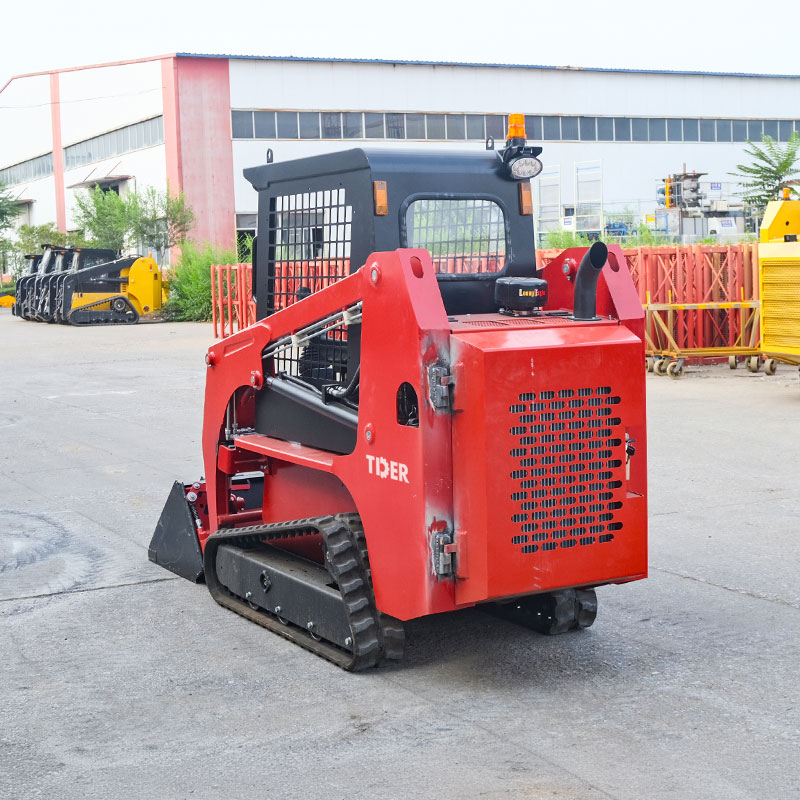

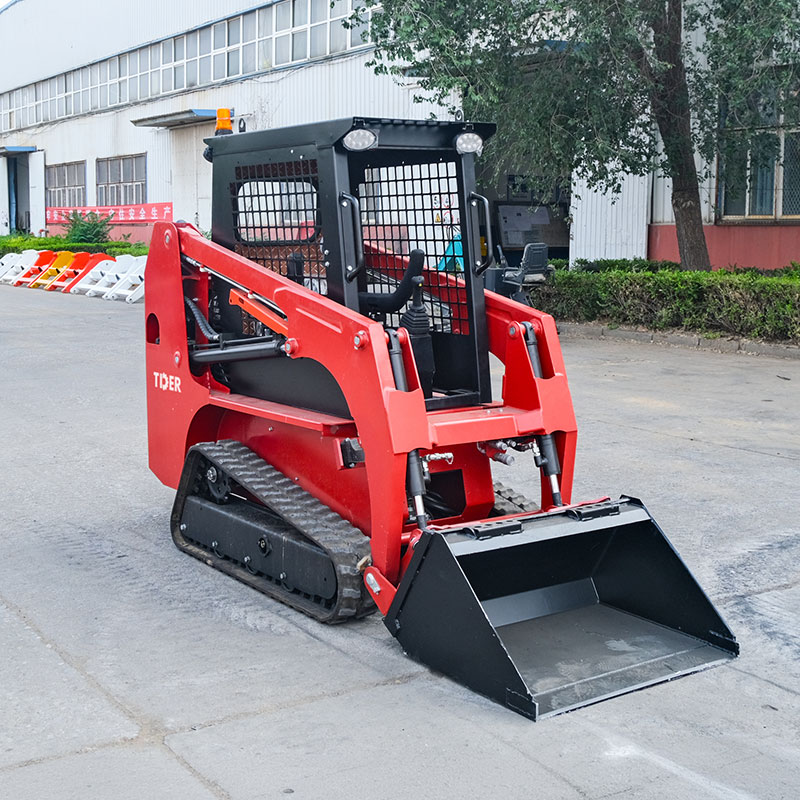

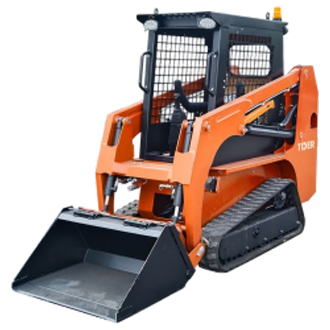

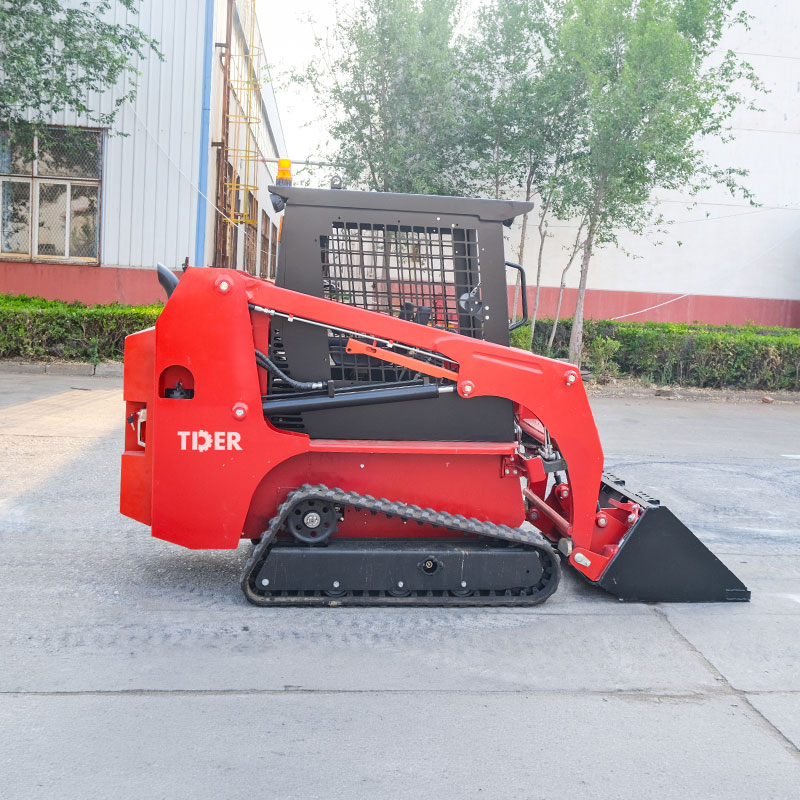

Name: 380kg Mini Track Skid Steer Loader with Kubota Engine
Availability: InStock

Features
Specifications
Product Showcase
FAQs
Related Products

Features

Kubota Engine with EPA4 and Euro 5 Certified

DS25 is equipped with the Kubota D1105 engine delivering 18.2 kW, designed for EPA4 and Euro 5 emissions standards. This engine provides consistent torque and fuel efficiency under continuous operation, while the international brand ensures easy maintenance, global parts availability, and long-term reliability.

Precision Hydraulic Controls for Smooth Operation

Featuring full hydraulic joystick control, combined with Danfoss motors, Italian Hansa pumps, and HB valves, the DS25 delivers responsive, smooth, and precise bucket and attachment movements. This system ensures operators can handle sensitive operations, from grading to material handling, with reduced fatigue and higher efficiency.

Sealed & Lubricated Steel Tracks for Superior Stability and Traction

DS25 is equipped with wide, sealed and lubricated steel tracks, delivering excellent ground clearance, traction, and flotation. This track system ensures stable performance on soft, uneven, and challenging terrain, allowing the machine to maintain reliable operation in mud, gravel, and other unstable working conditions.

Quick-Attach System for Multi-Purpose Applications

The loader comes with a standard quick-change mechanism, compatible with a variety of attachments such as buckets, pallet forks, log grapples, dozer blades, augers, and hydraulic breakers. This ensures the DS25 can tackle multiple tasks efficiently with one machine, reducing the need for additional equipment.

Compact but Heavy-Duty Build

Despite a self-weight of 1,400 kg, DS25 combines strength with maneuverability. Optimized wheelbase (801 mm) and low center of gravity improve stability during lifting and transportation tasks, even on uneven terrain.

Specifications

Operating Load	Kg	380
Max Speed	Km/H	9
Rated Flux	L/Min	50
High Flow Flux	L/Min	/
Tire Model		200X72
Self Weight Bucket	Kg	1400
Bucket Capacity	M³	0.19
Overall Operating Height	mm	3400
Hheight To Top Of Cab	mm	1813
Without Bucket Length	mm	2200
Overall Length With Bucket	mm	3000
Dumping Height	mm	2000
Width	mm	920
Bucket Width	mm	1070
Height To Bottom Of Level Bucket	mm	2446
Dumping Angle At Maximum Height	°	40
Height To Bucket Hinge Pin	mm	2500
Dumping Reach	mm	441
Rollback Of Bucket On Ground	°	30
Rollback Of Bucket At Full Height	°	103
Wheelbase	mm	801
Ground Clearance	mm	145
Angle Of Departure	°	20
Front Turning Radius Without Bucket	mm	960
Front Tuning Radius	mm	1660
Rear Tuning Radius	mm	1253
Rear Axle To Bumper	mm	738
Tread Width	mm	747
Engine		Kubota D1105
Rated Power	Kw	18.2
Fuel Tank Capacity	L	28

Product Showcase

Why Choose TDER?

20+ Years of Expertise

158 Countries Served

42,000㎡ of Advanced Production

Over $91M+ Annual Sales

FAQs

Are you a manufacturer or trading company?

TDER is a China-based manufacturer with over 20 years of experience in machinery production and export. Our machines have been exported to 158 countries. We have our own factory covering 42,000 m², integrating R&D, manufacturing, and global sales.

What payment terms do you accept?

We support T/T, L/C, and O/A. Usually, a 30% deposit is required, and the remaining 70% balance should be paid before delivery.

I am a first-time importer and don’t know the import process. What should I do?

We provide full guidance for the import process, from documentation to customs clearance, to ensure a smooth transaction.

What is the delivery time?

Normally, it takes 15–30 days to ship after receiving your deposit. Standard products in stock can be shipped immediately, while customized products may require longer, depending on your order requirements.

What about warranty?

Generally, we offer a 12-month or 2,000 working hours warranty, whichever comes first. Some products may have longer or shorter warranty periods, so please confirm with our sales team before placing your order.

Do you supply spare parts?

Customers can purchase consumable parts together with the machine. For any future replacement, we provide genuine parts at cost price. Parts will be shipped via international express, usually arriving within 7–10 days.

Do you have international certifications?

All our products have CE certification and meet international standards. If you require additional certifications, please consult with our sales team for detailed information.

Can the machine be customized?

Yes, we support OEM/ODM customization including engine brand, color, attachments, and specifications etc.
