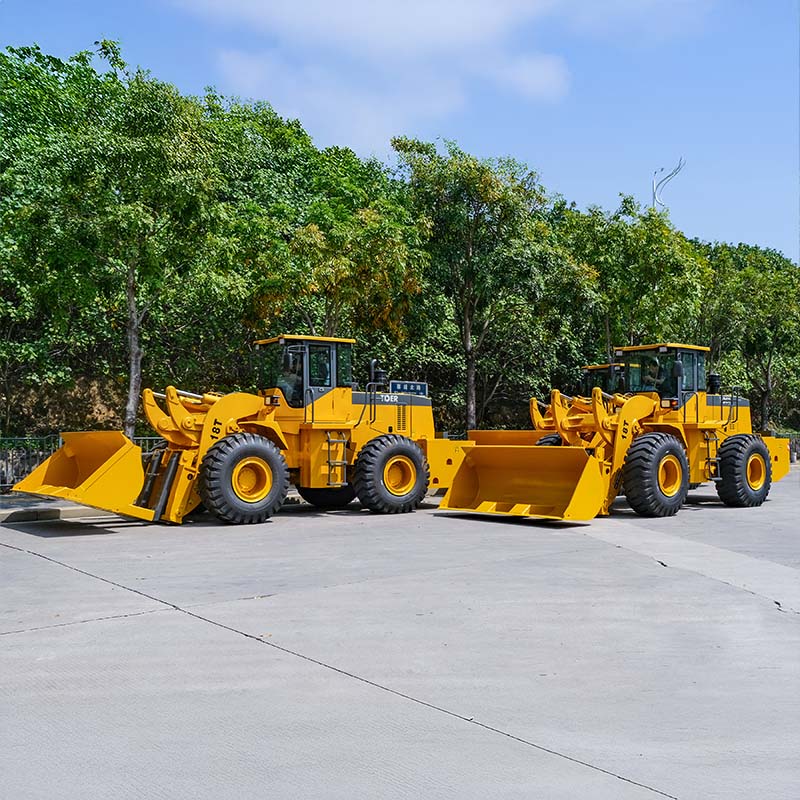

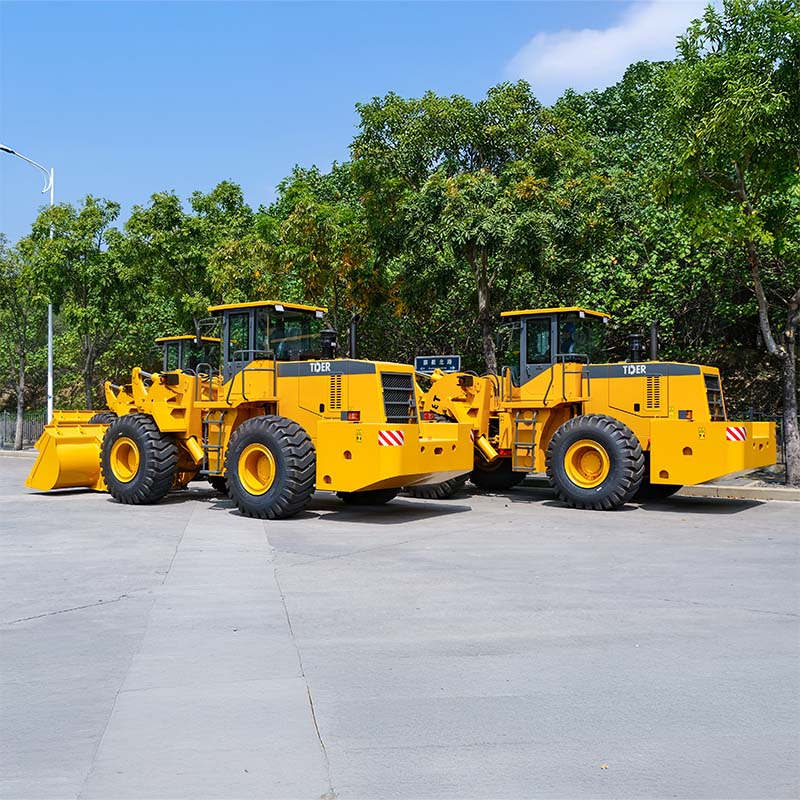

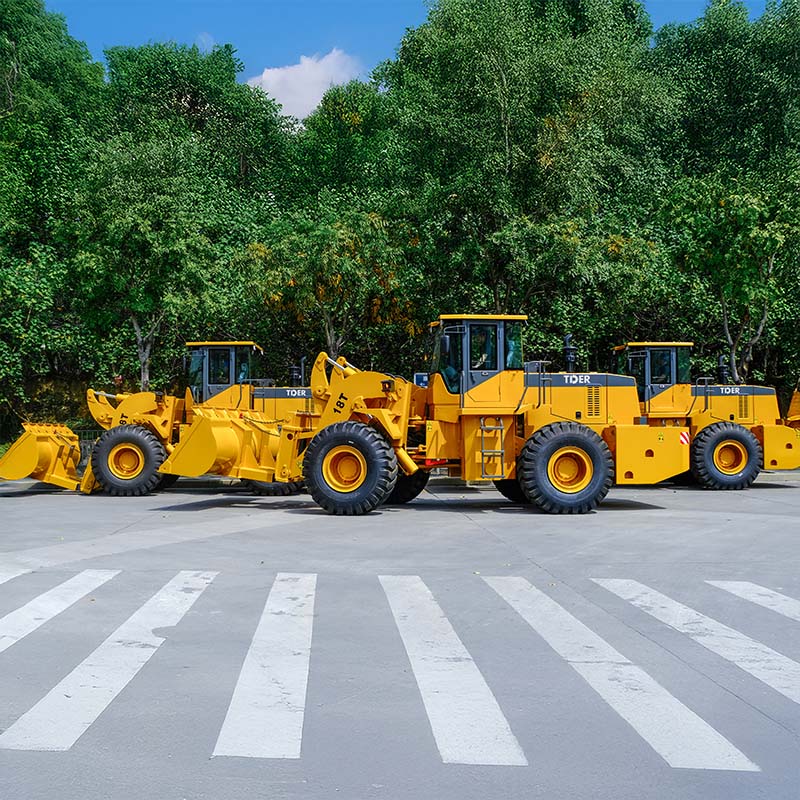

Name: 18 Ton Forklift Loader with 3m³ Fork-Bucket Attachment
Availability: InStock

Features
Specifications
Product Showcase
FAQs
Related Products

Features

3m³ Fork-Type Bucket for Versatile Loading Applications

The machine is compatible with a 3m³ fork-type bucket attachment, allowing quick switching between fork and bucket functions. This flexible configuration enables both pallet handling and bulk material loading, improving equipment utilization and reducing the need for multiple machines on site.

Strong Weichai Power for Heavy Duty Operation

Powered by a 162kW Weichai turbocharged engine, the machine delivers strong and efficient power output with low noise and optimized cooling design, ensuring stable operation under continuous heavy-duty working cycles.

Smooth Power System with Dual-Turbo Torque Converter

The Yitong gearbox combined with a dual-turbo hydraulic torque converter provides smooth power delivery and strong overload resistance, ensuring efficient matching with the engine during high-load material handling operations.

Reinforced Axle for High Load Reliability

Upgraded drive axle with enlarged hub and gear structure significantly improves load-bearing capacity and sealing performance, reducing oil leakage risk while maintaining stable operation in demanding working environments.

Heavy-Duty Mining Tires for Rough Terrain

Equipped with reinforced 24PR off-road tires, the machine delivers strong impact resistance and traction on uneven and harsh ground conditions, with optional heavy-duty radial tire configurations for extreme environments.

Specifications

Engine Rated Power	kW	162
Overall Length	mm	8350
Overall Width (Outside Tires)	mm	2850
Overall Height	mm	3350
Dumping Height	mm	3000
Tire Specification	-	23.5-25
Wheelbase	mm	3200
Tread Width	mm	2250
Fork Dimensions (L×W×H)	mm	1500 × 200 × 110
Distance of Fork	mm	≤780
Rated Loading Capacity	kg	18000
Operating Weight	kg	18500
Rated Loading Capacity	t	18
Max. Climbing Gradient	°	28
Rated Speed	r/min	2200
Lifting Time	s	≤6.8
Hydraulic Cylinder Time	s	≤12.55
Forward Gear I Speed	km/h	0-11.5
Forward Gear II Speed	km/h	0-38
Reverse Gear I Speed	km/h	0-16

Product Showcase

Why Choose TDER?

20+ Years of Expertise

158 Countries Served

42,000㎡ of Advanced Production

Over $91M+ Annual Sales

FAQs

Are you a manufacturer or trading company?

TDER is a China-based manufacturer with over 20 years of experience in machinery production and export. Our machines have been exported to 158 countries. We have our own factory covering 42,000 m², integrating R&D, manufacturing, and global sales.

What payment terms do you accept?

We support T/T, L/C, and O/A. Usually, a 30% deposit is required, and the remaining 70% balance should be paid before delivery.

I am a first-time importer and don’t know the import process. What should I do?

We provide full guidance for the import process, from documentation to customs clearance, to ensure a smooth transaction.

What is the delivery time?

Normally, it takes 15–30 days to ship after receiving your deposit. Standard products in stock can be shipped immediately, while customized products may require longer, depending on your order requirements.

What about warranty?

Generally, we offer a 12-month or 2,000 working hours warranty, whichever comes first. Some products may have longer or shorter warranty periods, so please confirm with our sales team before placing your order.

Do you supply spare parts?

Customers can purchase consumable parts together with the machine. For any future replacement, we provide genuine parts at cost price. Parts will be shipped via international express, usually arriving within 7–10 days.

Do you have international certifications?

All our products have CE certification and meet international standards. If you require additional certifications, please consult with our sales team for detailed information.

Can the machine be customized?

Yes, we support OEM/ODM customization including engine brand, color, attachments, and specifications etc.
