Name: 1500kg Skid Steer Tracked for Heavy Duty Precision Handling
Availability: InStock

Features
Specifications
Product Showcase
FAQs
Related Products

Features

Engineered for Maximum Power and Precise Heavy-Duty Handling

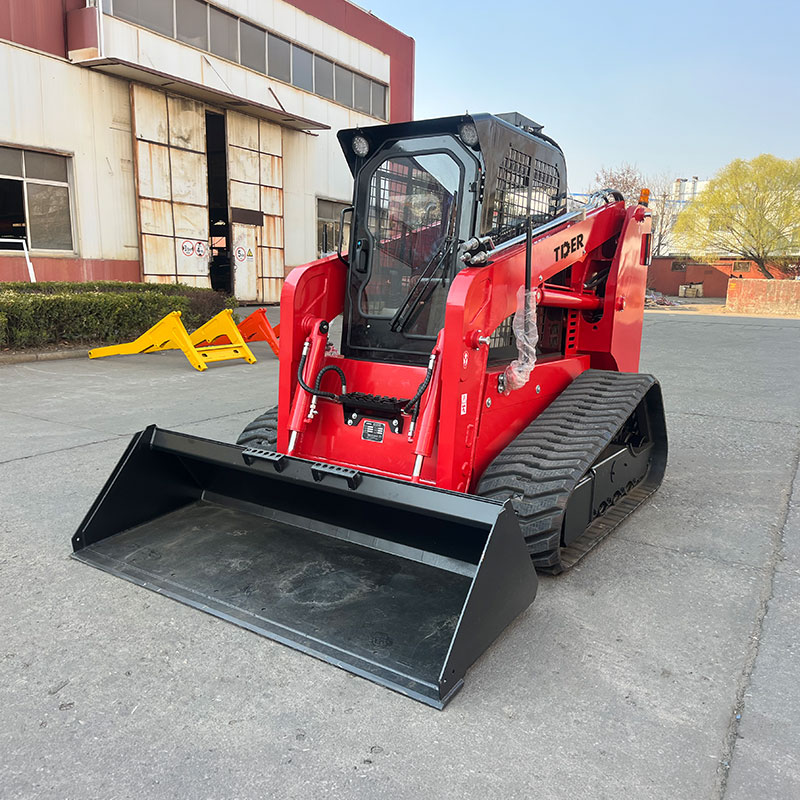

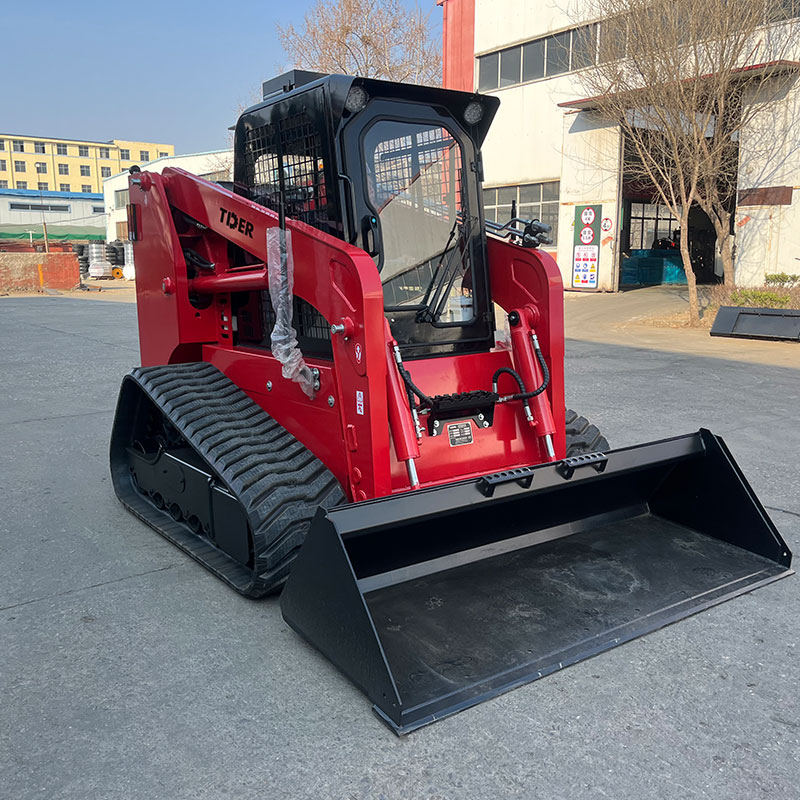

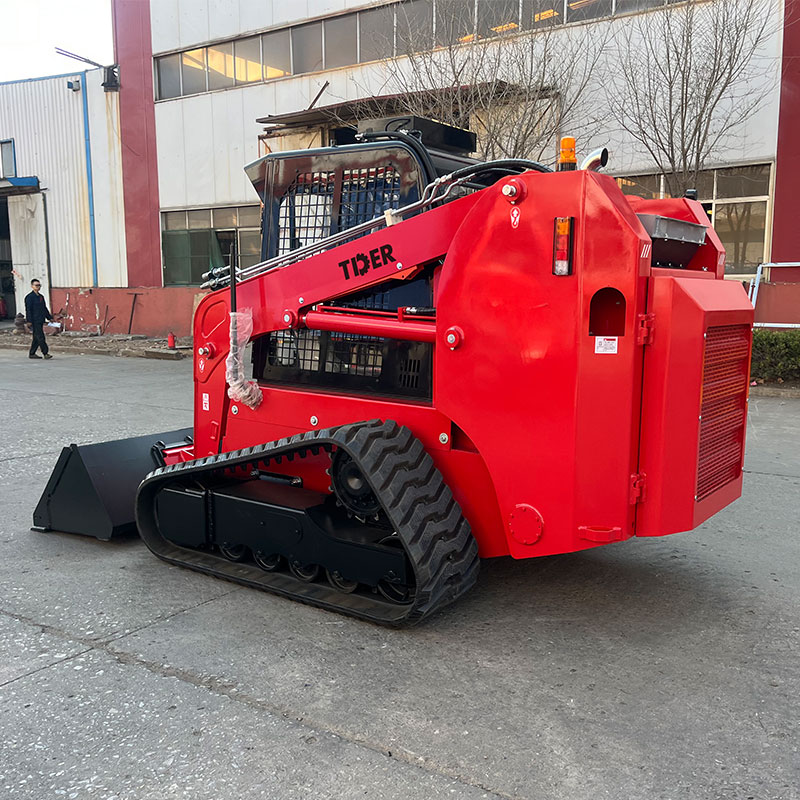

DS120 is built for high-intensity tasks, combining exceptional breakout force with smooth and controllable lift performance. It handles heavy loads with precision and stability, allowing operators to work confidently with the heaviest materials even in compact or challenging workspaces. Reinforced 450×86 tracks provide excellent traction and weight distribution, ensuring consistent stability on soft, uneven, or rough terrain.

This combination of compact size and powerful, precise handling makes the DS120 ideal for construction, demolition, landscaping, and industrial sites where both strength and accuracy are required.

Weichai Engine with Optimized Cooling for Continuous Heavy Work

Equipped with the Weichai WP4.1G140E301 103 kW engine, the DS120 offers consistent torque and high lifting power under sustained load cycles. Its stacked-core cooling system maintains optimal fluid viscosity, prevents overheating of both engine and hydraulics, and ensures reliable performance during continuous high-intensity operation. Optional engines from Cummins, Kubota, Yanmar, and Perkins provide flexibility for regional emission standards and maintenance preferences.

Precision Hydraulics with Premium Components

The DS120 features Rexroth travel motors and pumps paired with Italian HB valves, delivering highly responsive and stable hydraulic performance. With a high-flow capacity of up to 140 L/min, it supports demanding attachments such as augers, breakers, and trenchers, maintaining smooth operation under continuous heavy-duty cycles. The design ensures precise control during lifting, digging, and material handling.

Operator-Centric Comfort and Control

DS120 features a fully enclosed cab with large, bright LED lighting, providing excellent visibility and a comfortable workspace in all weather conditions. Its ergonomically designed controls and multi-function digital display allow operators to monitor machine performance and operate attachments efficiently with minimal fatigue. Standard dual-speed travel and high-flow hydraulic capabilities reduce effort during heavy-duty tasks, while optional upgrades like air-suspension seats, climate-controlled heating and cooling, and rearview camera systems further enhance comfort, safety, and operational confidence during long shifts.

Specifications

Operating Load	Kg	1500
Max Speed	Km/H	12\18
Rated Flux	L/Min	88
High Flow Flux	L/Min	140
Tire Model		450X86
Self Weight Bucket	Kg	4800
Bucket Capacity	M³	0.6
Overall Operating Height	mm	3770
Hheight To Top Of Cab	mm	2160
Without Bucket Length	mm	3000
Overall Length With Bucket	mm	3700
Dumping Height	mm	2450
Width	mm	2124
Bucket Width	mm	2160
Height To Bottom Of Level Bucket	mm	2983
Dumping Angle At Maximum Height	°	40
Height To Bucket Hinge Pin	mm	3150
Dumping Reach	mm	700
Rollback Of Bucket On Ground	°	30
Rollback Of Bucket At Full Height	°	104
Wheelbase	mm	1500
Ground Clearance	mm	200
Angle Of Departure	°	20
Front Turning Radius Without Bucket	mm	1365
Front Tuning Radius	mm	2200
Rear Tuning Radius	mm	1742
Rear Axle To Bumper	mm	938
Tread Width	mm	1654
Engine		Weichai WP4.1G140E301
Rated Power	Kw	103
Fuel Tank Capacity	L	90

Product Showcase

Why Choose TDER?

20+ Years of Expertise

158 Countries Served

42,000㎡ of Advanced Production

Over $91M+ Annual Sales

FAQs

Are you a manufacturer or trading company?

TDER is a China-based manufacturer with over 20 years of experience in machinery production and export. Our machines have been exported to 158 countries. We have our own factory covering 42,000 m², integrating R&D, manufacturing, and global sales.

What payment terms do you accept?

We support T/T, L/C, and O/A. Usually, a 30% deposit is required, and the remaining 70% balance should be paid before delivery.

I am a first-time importer and don’t know the import process. What should I do?

We provide full guidance for the import process, from documentation to customs clearance, to ensure a smooth transaction.

What is the delivery time?

Normally, it takes 15–30 days to ship after receiving your deposit. Standard products in stock can be shipped immediately, while customized products may require longer, depending on your order requirements.

What about warranty?

Generally, we offer a 12-month or 2,000 working hours warranty, whichever comes first. Some products may have longer or shorter warranty periods, so please confirm with our sales team before placing your order.

Do you supply spare parts?

Customers can purchase consumable parts together with the machine. For any future replacement, we provide genuine parts at cost price. Parts will be shipped via international express, usually arriving within 7–10 days.

Do you have international certifications?

All our products have CE certification and meet international standards. If you require additional certifications, please consult with our sales team for detailed information.

Can the machine be customized?

Yes, we support OEM/ODM customization including engine brand, color, attachments, and specifications etc.
