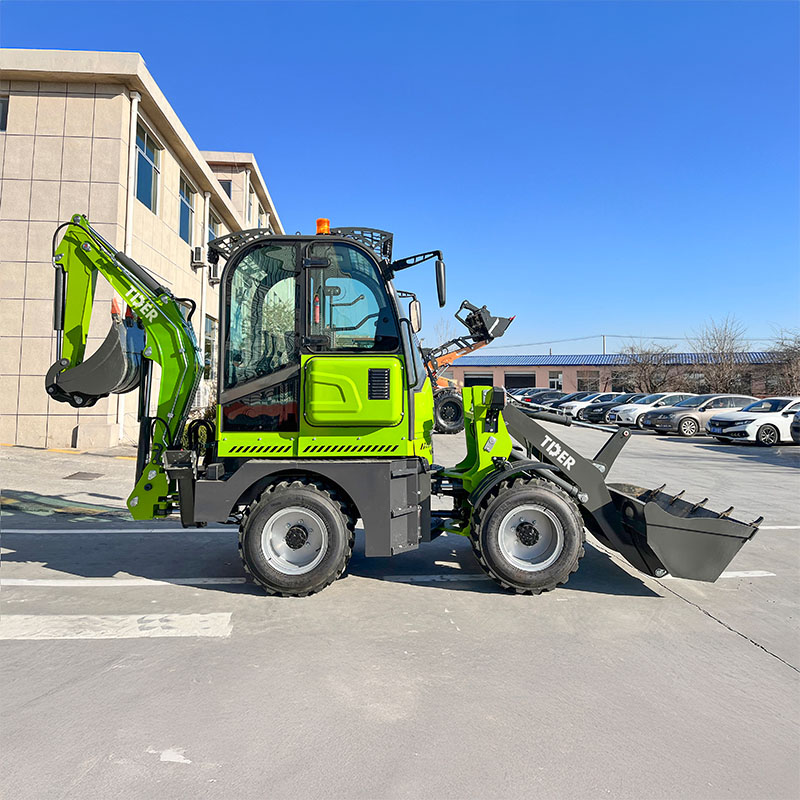

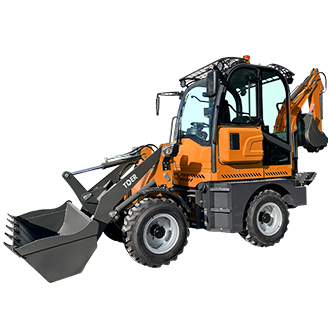

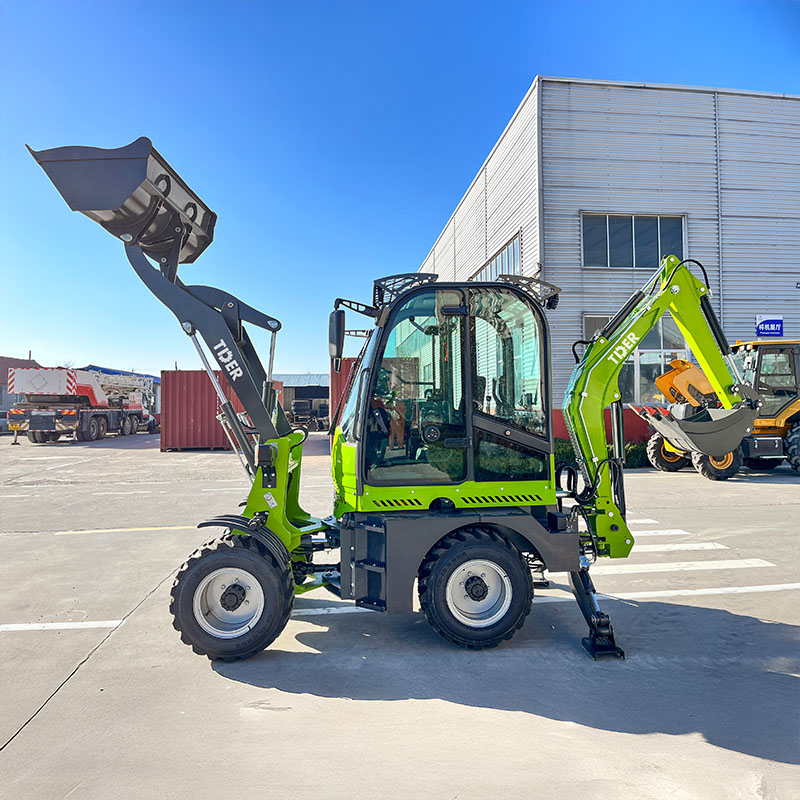

Name: 1 Ton Backhoe Loader with ISUZU Axle
Availability: InStock

Features
Specifications
Product Showcase
Gallery
FAQs
Related Products

Features

Multiple Engine Configurations for Greater Flexibility

For international markets and higher emission requirements, ZT15-20 supports engine options from globally recognized brands such as Kubota, Yanmar, and Perkins. These options are available with Euro V and EPA-compliant configurations, ensuring the machine meets strict environmental regulations while maintaining strong performance and reliability.

Axle Design Inspired by ISUZU Engineering

The axle system is developed based on proven ISUZU engineering concepts, ensuring stable load-bearing performance, smooth power transmission, and long-term durability under continuous operation.

Comfortable Operation with User-Oriented Cabin Design

The European-style cabin, combined with an adjustable control dashboard, provides a more ergonomic and comfortable operating environment, reducing operator fatigue during long working hours and improving overall productivity.

Versatile Working Capability for Multi-Function Applications

With 180° excavator rotation, loader dumping function, and a maximum digging depth of 2.35m, the machine is capable of handling loading, digging, and various construction tasks efficiently.

The pre-installed breaker pipeline further expands functionality, allowing quick adaptation to breaking and demolition work without additional modification.

Stable Structure with Enhanced Safety & Traction

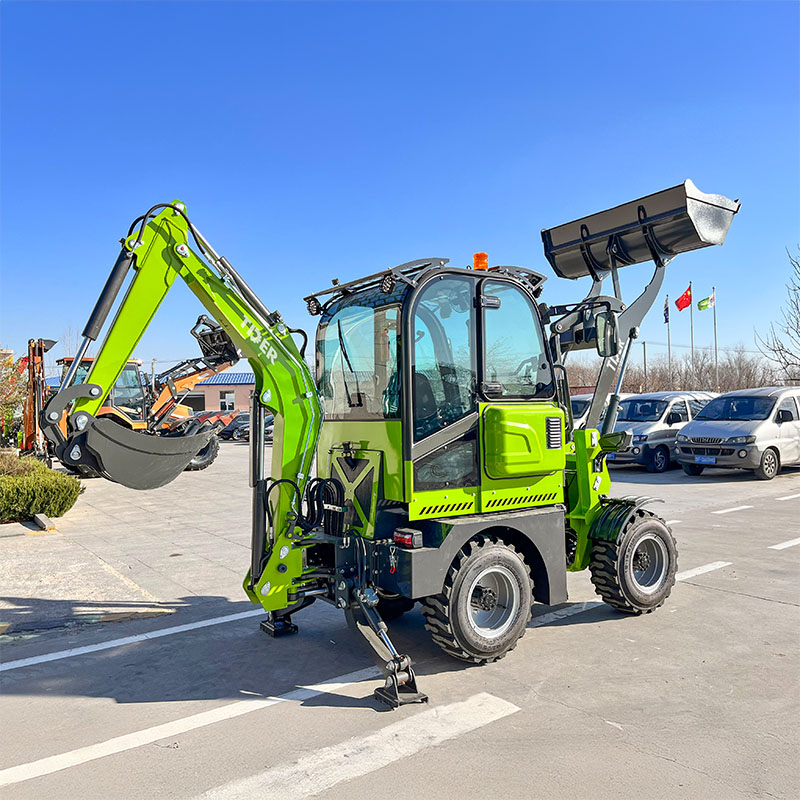

The A-frame outrigger system provides stable ground support during excavation, ensuring reliable operation across different working conditions.

Combined with articulated full hydraulic steering, the machine maintains flexible maneuverability, while the air-over-hydraulic disc braking system and 4WD configuration improve braking reliability, traction, and overall operational safety.

Specifications

Overall Dimension（L×W×H）	mm	550017502650mm
Wheel Base	mm	2070mm
Wheel Tread	mm	1475mm
Min. Ground Clearance	mm	250mm
System Pressure	MPa	16
Operating Weight	Kg	3400
Max. Speed	Km/h	25
Max. Climbing Gradient	°	25
Digging Parameters
Turning Radius	mm	3500
Max. Digging Depth	mm	2000
Max. Digging Dumping Height	mm	1800
Max. Digging Radius	mm	2700
Bucket Width	mm	400
Backhoe Capacity	m³	0.1
Max. Digging Height	mm	3300
Max. Digging Force	kN	25
Rotary Angle Of Excavator	°	180
Loading Parameters
Max. Dumping Height	mm	2800
Max. Dumping Distance	mm	800
Bucket Width	mm	1800
Bucket Capacity	m³	0.5
Max. Loading Lifting Height	mm	3300
Max. Breakout Force	kN	36
Forward Shovel Action Time	S	12
Engnie		Yunnei YN25GB
Rated Power	KW	37
Rated Speed	r/min	2400
Cylinders-Inside Diameter		4-90
Gear Shift		F2/ R2
Steering Angle	°	33
Tire Size		20.5-16
Front Wheel Pressure	kPa	250
Rear Wheel Pressure	kPa	250
Fuel Tank	L	30
Hydraulic Tank	L	30
Drive Type		Four-wheel drive
Variable Speed Type		Hydraulic variable speed
Variable Speed Type	mm	330

Product Showcase

Why Choose TDER?

20+ Years of Expertise

158 Countries Served

42,000㎡ of Advanced Production

Over $91M+ Annual Sales

Gallery

FAQs

Are you a manufacturer or trading company?

TDER is a China-based manufacturer with over 20 years of experience in machinery production and export. Our machines have been exported to 158 countries. We have our own factory covering 42,000 m², integrating R&D, manufacturing, and global sales.

What payment terms do you accept?

We support T/T, L/C, and O/A. Usually, a 30% deposit is required, and the remaining 70% balance should be paid before delivery.

I am a first-time importer and don’t know the import process. What should I do?

We provide full guidance for the import process, from documentation to customs clearance, to ensure a smooth transaction.

What is the delivery time?

Normally, it takes 15–30 days to ship after receiving your deposit. Standard products in stock can be shipped immediately, while customized products may require longer, depending on your order requirements.

What about warranty?

Generally, we offer a 12-month or 2,000 working hours warranty, whichever comes first. Some products may have longer or shorter warranty periods, so please confirm with our sales team before placing your order.

Do you supply spare parts?

Customers can purchase consumable parts together with the machine. For any future replacement, we provide genuine parts at cost price. Parts will be shipped via international express, usually arriving within 7–10 days.

Do you have international certifications?

All our products have CE certification and meet international standards. If you require additional certifications, please consult with our sales team for detailed information.

Can the machine be customized?

Yes, we support OEM/ODM customization including engine brand, color, attachments, and specifications etc.
